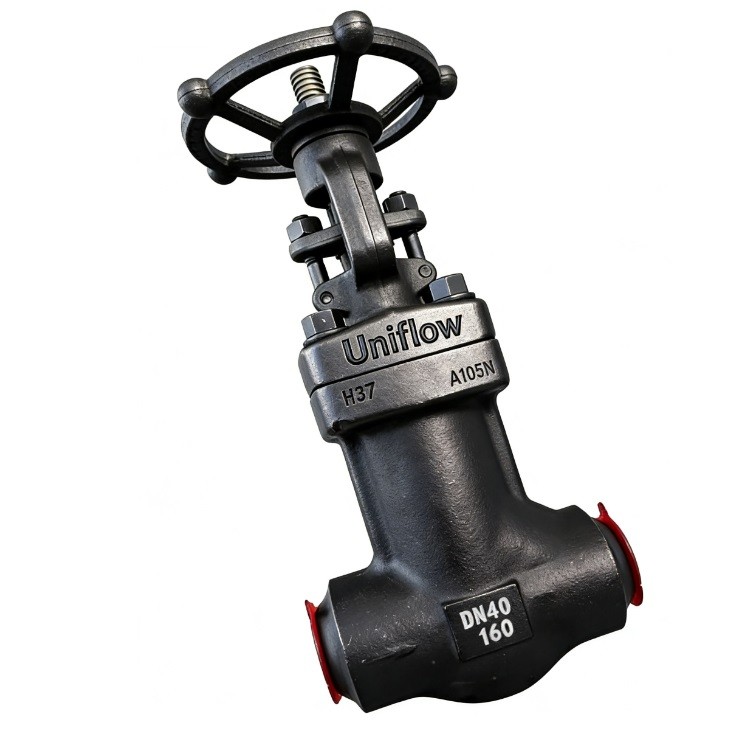

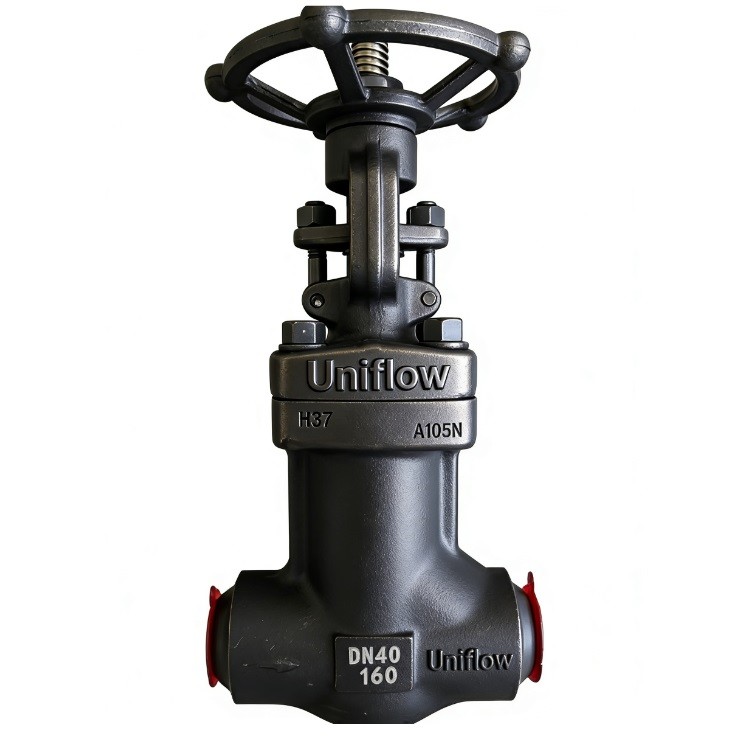

The PN160 Forged Steel A105N Bellow Seal Globe Valve is an ultra-high-pressure safety valve designed for zero-leakage performance. The A105N forged body provides the structural density required for 160 bar service, while the Butt Weld (BW) ends ensure permanent piping integrity. Its core feature—a metallic bellows—creates a hermetic seal that eliminates fugitive emissions, making it essential for high-pressure thermal oil, toxic gases, and steam systems.
Technical Attributes: PN160 A105N Bellow Seal Globe Valve
Body Material,"ASTM A105N (Forged Carbon Steel, Normalized)"
Pressure Rating,PN160 (16.0 MPa / Class 900-1500 Equiv.)
Sealing Type,Metallic Bellows Seal (Hermetic)
Design Standard,DIN EN 13709 / API 602
End Connection,Butt Welding (BW) to EN 12627 / ASME B16.25
Size Range,DN15 - DN50 (1/2" to 2")
Bellows Material,SS316L / Hastelloy / Inconel
Secondary Seal,Emergency Graphite Gland Packing
Disc/Plug Design,Throttling or Conical Plug
Seat/Trim Material,Stellite Faced (API Trim 5 or 8)
Stem Material,ASTM A182-F6a (13% Cr)
Bonnet Type,Bolted Bonnet (BB) or Welded Bonnet
Temperature Range,−29∘C to +425∘C
Face-to-Face,DIN EN 558 Series 1 / Manufacturer Std
Leakage Rate,EN 12266-1 Rate A (Zero Leakage)
Stem Type,OS&Y (Outside Screw & Yoke)
Testing Standard,API 598 / EN 12266-1
Cycle Life,"Bellows rated for >5,000 cycles"
Body Coating,Black Phosphated or Heat-Resistant Silver
Operation,Impact Handwheel (High Pressure Assist)
Compliance,PED 2014/68/EU / CE
