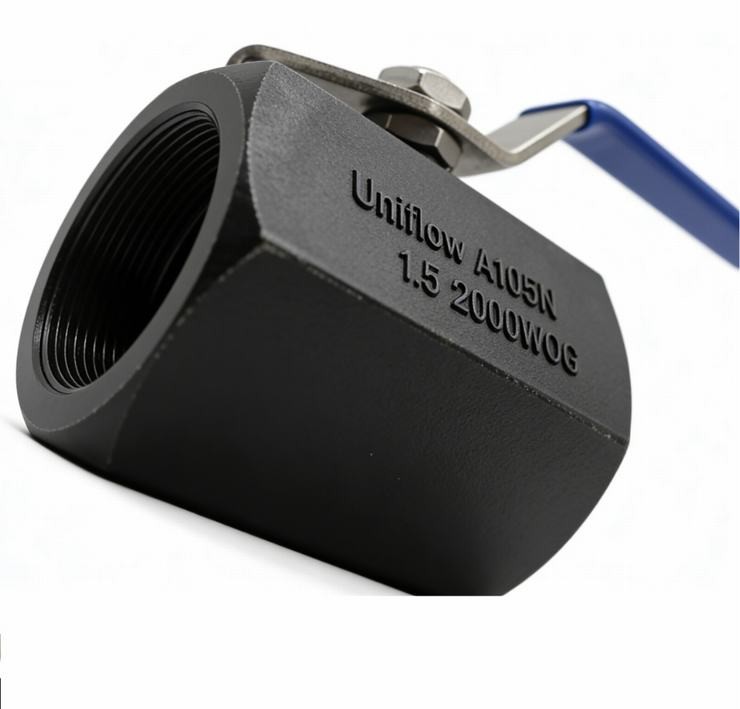

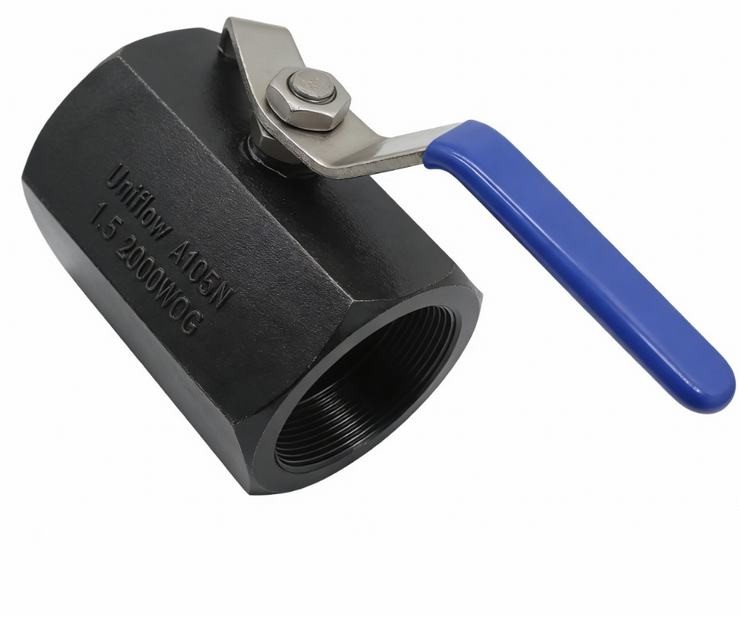

The One-Piece Hexagonal High-Pressure Ball Valve is a compact, ultra-robust valve engineered for high-stress hydraulic and industrial applications. Its One-Piece (Unibody) Hexagonal body is machined from forged carbon steel, minimizing potential leak paths and providing exceptional structural strength. Rated at 2000 WOG ($2000 \text{ PSI}$), it features a reduced bore design to maintain high pressure while offering reliable isolation. The heavy-duty switch handle ensures easy operation in high-vibration environments.
Technical Attributes: Hexagonal 2000 WOG Ball Valve
Body Material,Forged Carbon Steel (ASTM A105)
Body Type,One-Piece Hexagonal (Unibody)
Pressure Rating,2000 WOG (2000 PSI / 13.8 MPa)
Bore Design,Reduced Bore (Standard Port)
Connection Type,Female Threaded (NPT / BSPP / BSPT)
Size Range,1/4" to 2" (DN8 - DN50)
Ball Material,Stainless Steel (SS304 / SS316)
Seat Material,RPTFE or Delrin (High Pressure Grade)
Stem Design,Internal Entry / Blow-out Proof
Stem Material,ASTM A182 F6a / SS304
Handle Style,Heavy Duty Lever with Vinyl Grip
Temperature Range,−29℃ to +180℃
Sealing Gasket,PTFE / Viton O-ring
Applicable Media,"Water, Oil, Gas (WOG), Hydraulic Fluid"
Anti-Static Device,Optional (Standard for Gas Service)
Surface Treatment,Black Phosphated or Zinc Plated
Design Standard,ASME B16.34 / MSS SP-110
Testing Standard,API 598 (Pressure/Seat Leakage)
Thread Standard,ASME B1.20.1 (NPT) / DIN 2999
Maintenance,Non-Repairable (Sealed Unibody)
