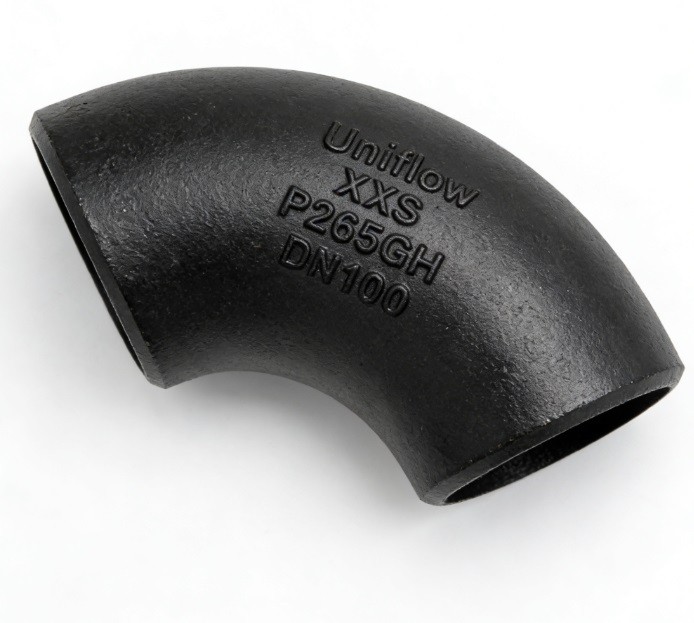

The P265GH Butt Welding LR 90° Elbow is a high-performance European pressure-grade fitting. Made from 1.0425 non-alloy steel, it offers higher yield strength than P235GH, making it ideal for higher-pressure boilers and steam lines. The Long Radius (LR) design provides a $1.5D$ bend to ensure smooth flow. Following EN 10253-2, these elbows are PED-certified for elevated temperature service, providing a leak-proof, high-strength connection for critical power and heat infrastructure.
Technical Attributes: P265GH LR 90° Elbow
Material Grade,P265GH (Pressure Grade Carbon Steel)
Material Number,1.0425
Fitting Type,90 Degree Long Radius (LR) Elbow
Design Standard,EN 10253-2 (Type A or Type B)
Radius Type,R≈1.5×D (Long Radius)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per EN 10253-2
Size Range,DN15 to DN1200
Wall Thickness,Matches EN 10216-2 Pipe Series
Manufacturing,Seamless or Welded Construction
Carbon Content,C≤0.20%
Tensile Strength,410–530 MPa
Yield Strength,≥265 MPa
Impact Energy,≥27J (at 20∘C / 0∘C / −20∘C)
Surface Treatment,"Shot Blasting, Black Paint, or Varnish"
Testing Standard,UT / RT (for welded) and Hydrostatic
Certification,EN 10204 3.1 / CE Marked (PED)
Traceability,Fully Stamped Heat and Batch Numbers
Max Service Temp,Up to +450∘C (Elevated Temp certified)
