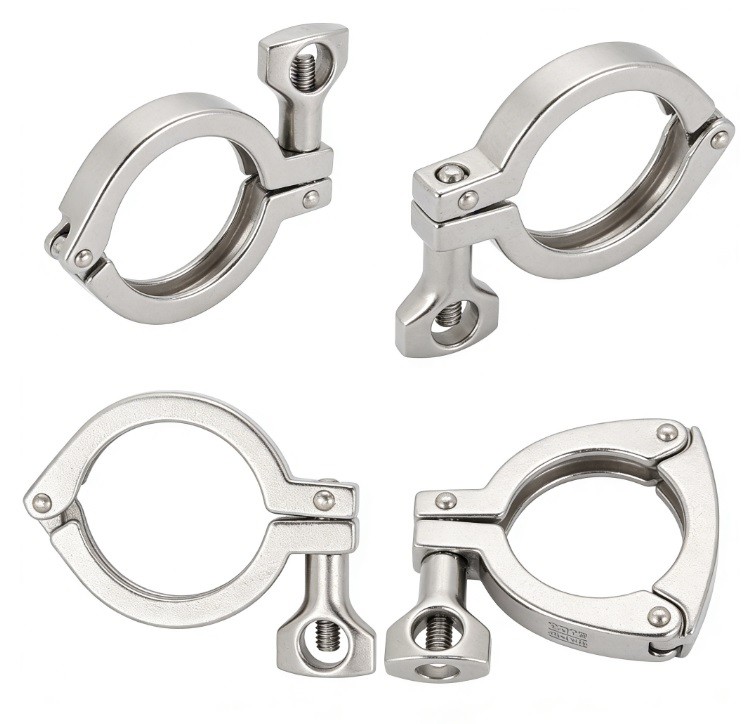

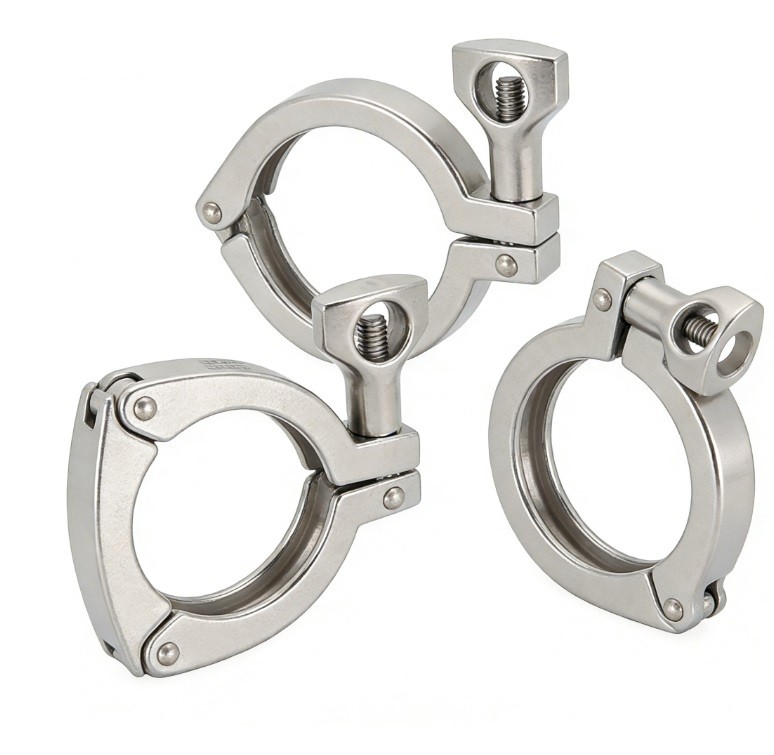

Hygienic Tri-Clamps

Hygienic Tri-Clamps (or TC fittings) are the gold standard for connecting piping in the food, beverage, and biotech industries. They consist of two flanged ends, a gasket, and a hinged clamp to create a leak-proof, high-pressure seal.

Key Features:
Sanitary Design: Crevice-free interiors prevent bacterial growth.
Easy Maintenance: Can be disassembled by hand for "Clean-in-Place" (CIP) or manual washing.
Durability: Usually made of 304 or 316L stainless steel.

Download

Technical Specifications Table

Material (Body),304 or 316L Stainless Steel

Gasket Materials,"EPDM, Silicone, PTFE (Teflon), FKM (Viton)"

Standard Sizes,1/2" to 12" (Commonly based on tube OD)

Surface Finish,< 0.8 µm Ra (32 Ra) or Electropolished

Pressure Rating,Up to 500 PSI (Size & temperature dependent)

Temperature Range,-40°C to 230°C (Varies by gasket material)

Compliance,"3-A Sanitary, FDA, ASME BPE, EHEDG"

Connection Type,Clamp (requires no threading or welding for assembly)

Flange Style,Flanged ferrules (Standard or Short)

Chemical Resistance,High resistance to CIP chemicals and steam
