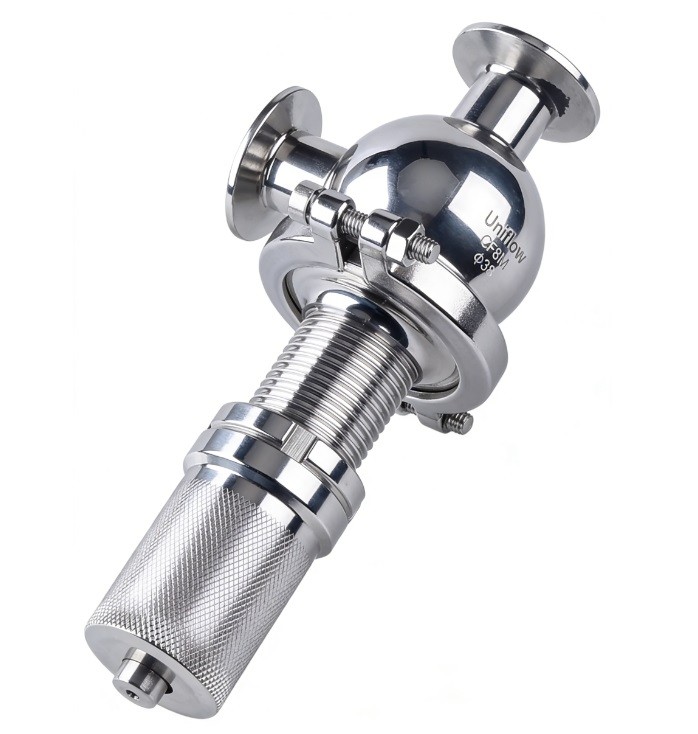

Hygienic Tri-Clamp Safety Relief Valve
This valve acts as the ultimate "security guard" for pressurized tanks and lines. When pressure exceeds a pre-set limit, the valve automatically lifts to vent excess fluid, preventing equipment damage or rupture. The Tri-Clamp design ensures a sterile, crevice-free connection, while the polished stainless steel body meets strict food and pharma standards.
Safety: Protects against overpressure in CIP/SIP loops.
Hygiene: Fully drainable with no dead spaces.
Operation: Spring-loaded for instant response.
Technical Attributes: Hygienic Tri-Clamp Safety Relief Valve
1,Function,Automatic pressure relief; opens when set-pressure is exceeded.
2,Connection Type,Tri-Clamp (TC) ferrules for easy removal and cleaning.
3,Body Material,AISI 316L (1.4404) stainless steel for maximum corrosion resistance.
4,Seat Seal,"EPDM, FKM (Viton), or Silicone (all FDA/USP Class VI compliant)."
5,Set Pressure Range,"Adjustable via spring tension, typically 0.5 bar to 6.0 bar."
6,Reset Logic,Self-reclosing; shuts tight once pressure drops below set-point.
7,Surface Finish,Internals polished to Ra ≤ 0.4 μm; mirror-polished exterior.
8,Manual Overide,Often includes a lifting lever or pull-knob for manual venting/CIP.
9,Operating Temp.,Suitable for environments from −10°C to +140°C (SIP capable).
10,Design Standard,Manufactured to ASME BPE and PED 2014/68/EU guidelines.
11,Sanitary Design,Crevice-free internals to ensure 100% CIP (Clean-in-Place) effectiveness.
12,Spring Material,Stainless Steel (typically 304 or 316) to prevent rust contamination.
13,Discharge Path,Angle-type discharge (side outlet) to direct blow-off safely.
14,Calibration,Factory pre-set and tested; often lead-sealed for safety tampering.
15,Maintenance,Tool-free disassembly of the clamp-style bonnet for seal inspection.
