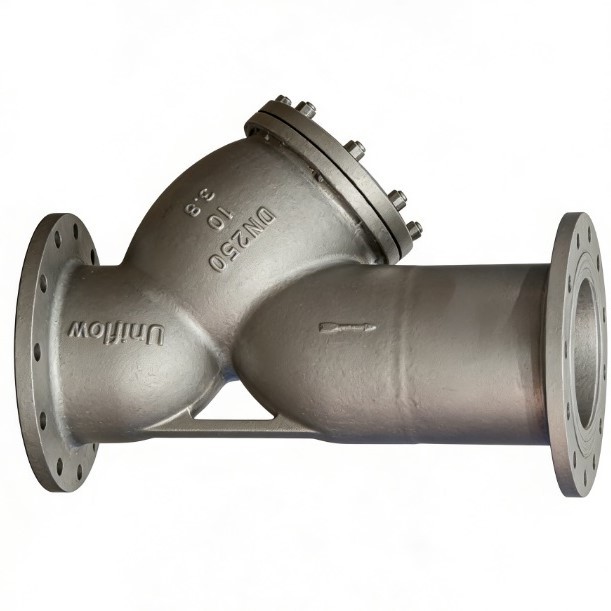

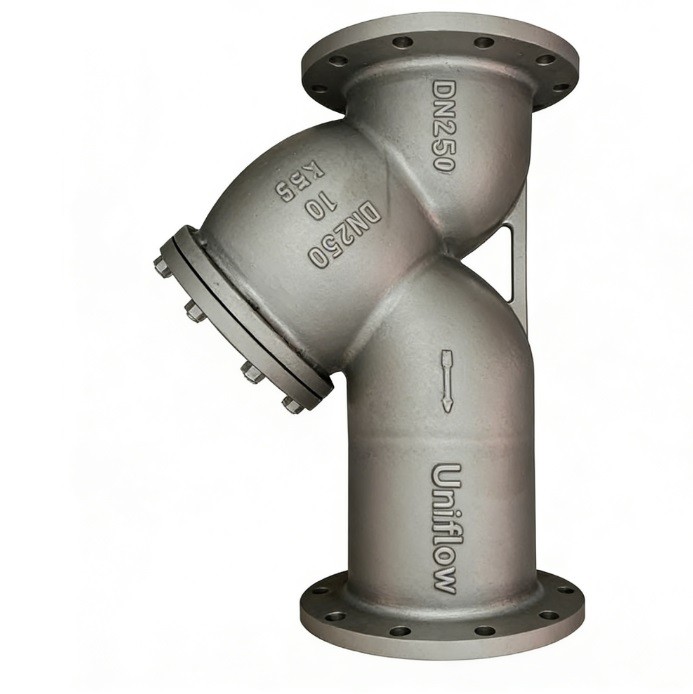

The DIN Stainless Steel 304 Y-Strainer (DN250 PN10) is a large-bore filtration component designed for high-flow corrosive environments. Its F1 (Long Pattern) body provides an expanded internal chamber, reducing pressure drop while increasing debris holding capacity. Built from 1.4308 (SS304), it is ideal for water treatment, chemical processing, and food industries. The "Y" configuration allows for easy screen cleaning via the bolted bonnet without removing the unit from the pipeline.
Technical Attribute Table: DIN DN250 PN10 Y-Strainer
1,Design Standard,DIN EN 12516
2,Nominal Diameter,DN250 (10 Inch)
3,Pressure Rating,PN10 (1.0 MPa / 10 Bar)
4,Body Material,Stainless Steel 1.4308 (SS304)
5,Face-to-Face,DIN 3202 F1 / EN 558 Series 1
6,Screen Material,SS304 (Perforated Sheet + Mesh)
7,Standard Mesh,1.0mm - 2.0mm (Customizable)
8,Flange Connection,DIN EN 1092-1 Type 21 RF
9,Cover Type,Bolted Bonnet (Removable)
10,Drain/Blow-off,G 1" or G 1/2" Plugged Port
11,Gasket Material,PTFE / Spiral Wound SS304+Graphite
12,Flow Direction,Uni-directional (Per Arrow)
13,Installation,Horizontal or Vertical (Down-flow)
14,Temperature Range,−196℃ to +300℃
15,Shell Test Pressure,1.5 MPa (15 Bar)
16,Seat Test Pressure,1.1 MPa (11 Bar)
17,Bolting Material,A2-70 Stainless Steel
18,Surface Finish,Pickled and Passivated
19,Filtration Area,Approx. 3× to 4× Pipe Area
20,Tightness Class,EN 12266-1
