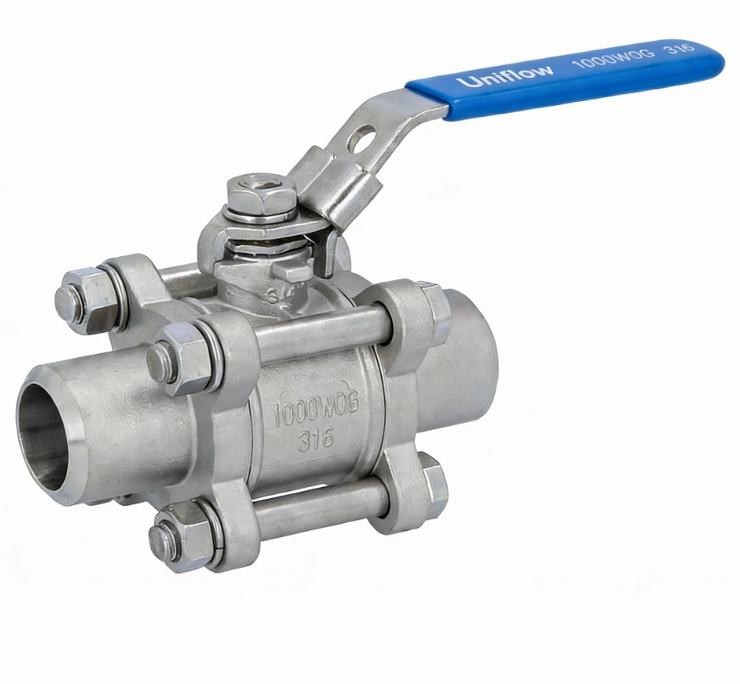

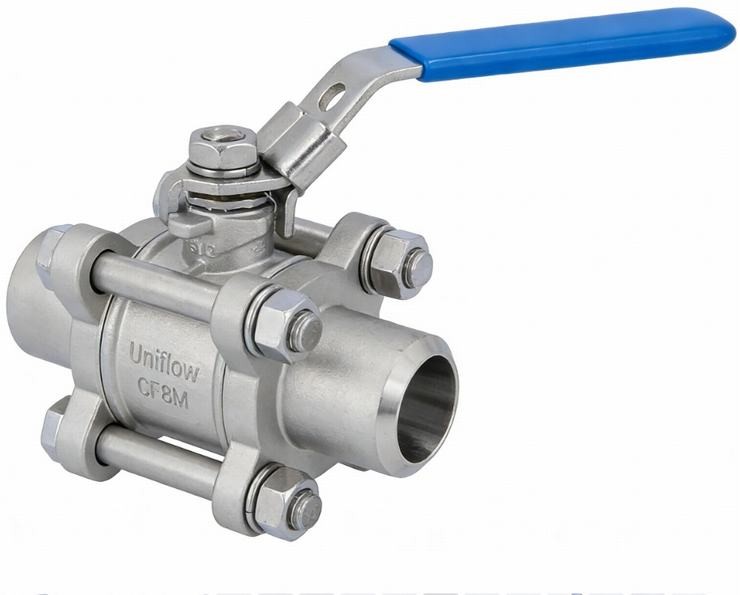

The DIN 3202 S13 3-piece butt weld ball valve is a European-standard valve designed for high-integrity industrial piping. The S13 designation refers to its specific face-to-face length according to DIN standards. Its 3-piece construction allows the center section to be removed during welding to protect the seats from heat damage. With butt weld ends, it provides a permanent, leak-proof connection, making it ideal for high-pressure chemical, steam, and water applications.
Technical Attributes
1,Design Standard,DIN EN 17292 / DIN 3357
2,Face-to-Face Dim.,DIN 3202-S13 (EN 12982 Series 63)
3,End Connection,Butt Weld (BW) to DIN 3239 / EN 12627
4,Body Design,3-Piece (Bolted construction for in-line repair)
5,Size Range,DN15 to DN100
6,Pressure Class,PN16 / PN40 / PN63
7,Body Material,Stainless Steel 1.4408 (CF8M) / 1.0619 (WCB)
8,Bore Design,Full Bore (Full Port)
9,Seat Material,PTFE / RPTFE / TFM 1600
10,Stem Design,Blow-out Proof Bottom-entry
11,Mounting Pad,ISO 5211 (For direct automation)
12,Handle Operation,Stainless Steel Lever with Locking Device
13,Surface Quality,Ra ≤ 3.2 μm (Standard industrial finish)
14,Testing Standard,EN 12266-1 (Pressure and Leakage test)
15,Working Temp.,−20∘C to +180∘C
