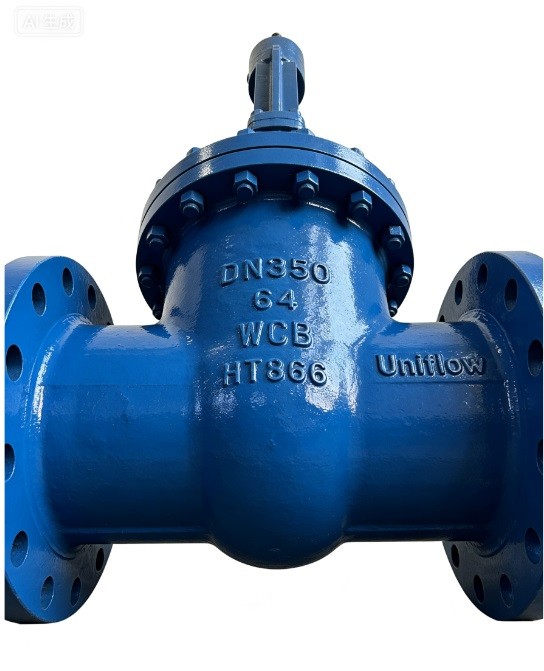

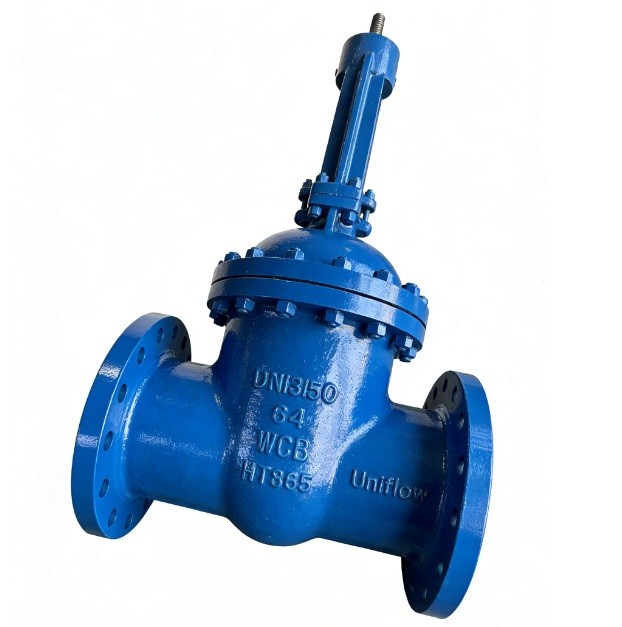

The DIN 3202 F7 PN64 Cast Steel WCB Gate Valve is a high-pressure powerhouse. Built for extreme conditions, the F7 standard specifies a "Long Pattern" face-to-face length, while the PN64 rating allows it to handle pressures up to 64 bar.
Constructed from ASTM A216 WCB, it features a rising stem (OS&Y) and a flexible wedge for superior sealing in steam, oil, and gas. It is the go-to choice for power plants and heavy industrial pipelines requiring high safety margins.
Technical Attribute Table: DIN 3202 F7 WCB (PN64)
1,Design Standard,DIN 3352 / EN 1984
2,Face-to-Face,DIN 3202 F7 / EN 558 Series 26 (Long Pattern)
3,Pressure Rating,PN64 (6.4 MPa / 64 Bar)
4,Body Material,ASTM A216 WCB / GP240GH (Cast Carbon Steel)
5,Nominal Diameter,DN50 – DN600
6,Flange Dimensions,DIN EN 1092-1 Type 21 (PN64 Drilling)
7,Stem Type,OS&Y (Rising Stem / Outside Screw & Yoke)
8,Wedge Design,Flexible Wedge (to prevent thermal binding)
9,Seat Material,Stellite No. 6 (Hard-faced) or 13Cr
10,Stem Material,ASTM A182 F6a / Stainless Steel 410
11,Bonnet Gasket,Stainless Steel Spiral Wound + Graphite / Ring Joint
12,Packing,High-Temperature Die-Formed Graphite
13,Backseat Feature,Integral Backseat for packing replacement under pressure
14,Operation,Gearbox (Standard for PN64) or Handwheel
15,Tightness Class,EN 12266-1 Rate A (Zero leakage)
16,Service Temp.,−29℃ to +425℃
17,Shell Test (Hydro),9.6 MPa (96 Bar)
18,Seat Test (Hydro),7.04 MPa (70.4 Bar)
19,Air Test (Seat),0.6 MPa (6 Bar)
20,External Finish,Heat-Resistant Silver Aluminum Paint
