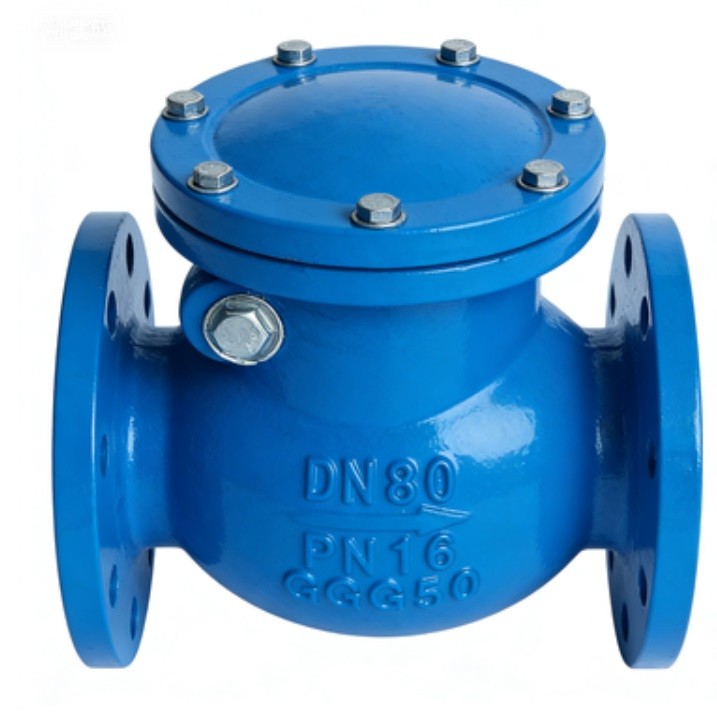

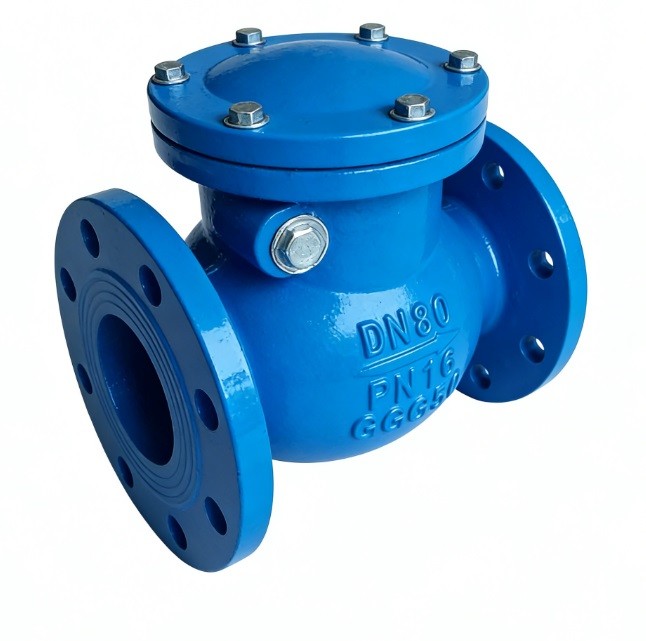

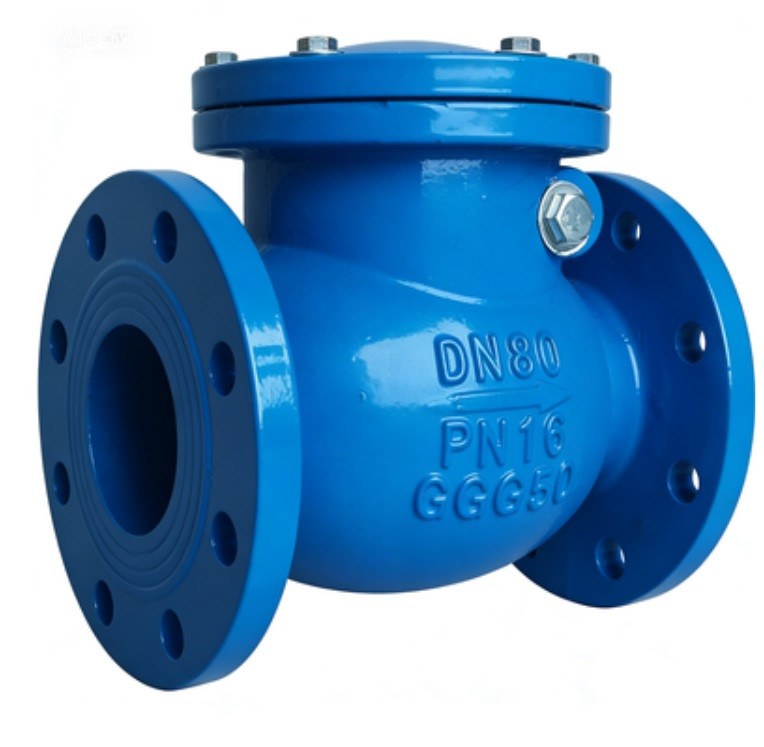

A DIN 3202 F6 Metal Seat Swing Check Valve is a heavy-duty non-return valve designed to prevent backflow in industrial pipelines. It is characterized by its "Swing" mechanism, where a disc hinges at the top and swings away from the seat to allow flow, and its "Metal-to-Metal" seal, which provides high durability in demanding environments.
The F6 designation refers to its standardized face-to-face length according to the DIN 3202 (or EN 558 Series 48) specification, ensuring it fits perfectly into European-standard piping layouts.
1. Key Components & Design
The Swing Disc: A robust metal plate attached to a hinge pin. It opens automatically with fluid pressure and closes by gravity (and backpressure) when the flow stops.
Metal Seating: The sealing surfaces of both the body and the disc are made of metal (typically brass, bronze, or stainless steel). This allows the valve to handle higher temperatures and abrasive fluids that would destroy a rubber-seated valve.
Full Bore: When fully open, the disc swings out of the way, providing a straight-through flow path with minimal pressure drop.
Technical Attributes
1,Design Standard,DIN EN 16767 / DIN 3840
2,Face-to-Face Dim.,DIN 3202 F6 / EN 558 Series 48
3,Size Range,"DN40 to DN600 (1.5"" to 24"")"
4,Pressure Class,PN10 / PN16 / PN25
5,Sealing Type,Metal-to-Metal (Hard Seal)
6,Body Material,Cast Iron (GG25) or Ductile Iron (GGG40/50)
7,Bonnet Material,Same as Body (GG25 / GGG50)
8,Disc Material,Cast/Ductile Iron with Metal Seating Face
9,Body Seat Ring,"Brass, Bronze, or Stainless Steel"
10,Disc Seat Ring,"Brass, Bronze, or Stainless Steel"
11,Hinge Pin/Shaft,Stainless Steel AISI 420 / 304
12,Hinge Arm,Ductile Iron or Carbon Steel
13,Connection Type,Flanged (Raised Face)
14,Flange Standard,EN 1092-2 / DIN 2501
15,Bore Design,Full Bore (Unobstructed straight-through)
16,Tightness Class,EN 12266-1 Rate C / Rate D
17,Coating,Anti-corrosive Primer or Fusion Bonded Epoxy (FBE)
18,Shell Test Pressure,"1.5×PN (e.g., 24 Bar for PN16)"
19,Seat Test Pressure,"1.1×PN (e.g., 17.6 Bar for PN16)"
20,Working Temp.,−10°C to +200°C (depending on trim)
21,Applicable Media,"Water, Steam, Oil, Non-corrosive Liquids"
