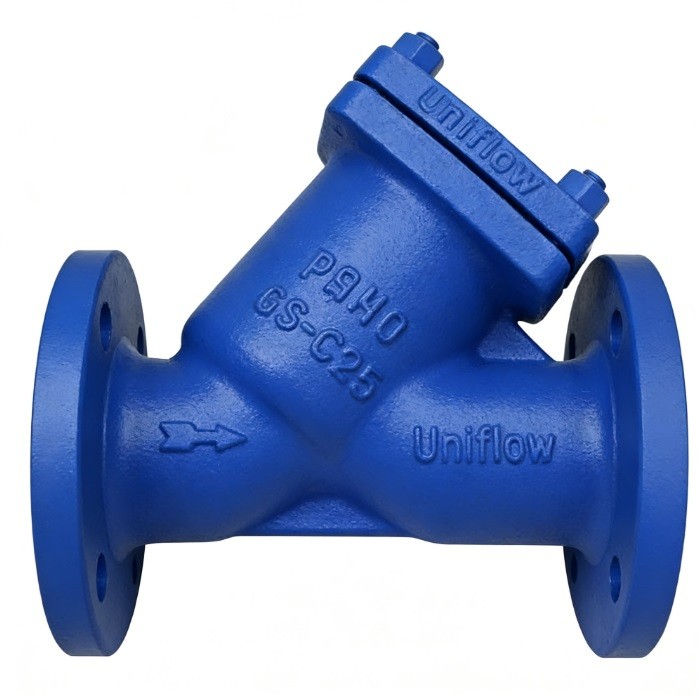

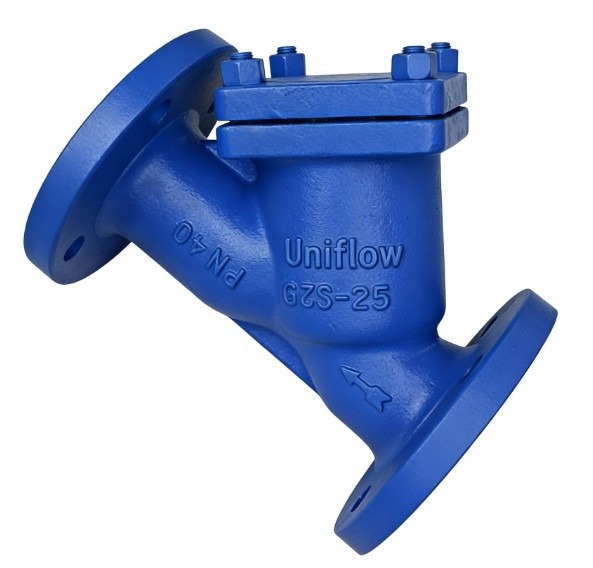

The **DIN 3202 F1 Cast Steel Y Strainer (PN25)** is a vital protection component for industrial pipelines. Its "Y" shaped body houses a perforated mesh screen that filters out solid debris, protecting pumps, meters, and valves from damage.
Adhering to the **F1** face-to-face standard, it is built from **GP240GH** cast steel to withstand pressures up to **25 bar**. It features a bolted cover for easy cleaning and a blow-off plug for routine maintenance.
Technical Attribute Table: DIN 3202 F1 Y-Strainer (PN25)
1,Design Standard,DIN EN 12516 / DIN 3352 Basis
2,Face-to-Face,DIN 3202 F1 / EN 558 Series 1
3,Pressure Rating,PN25 (2.5 MPa)
4,Body Material,Cast Steel (GP240GH / 1.0619 / WCB)
5,Nominal Diameter,DN15 – DN600
6,Flange Type,DIN EN 1092-1 Type 21 (Raised Face)
7,Screen/Mesh Material,Stainless Steel (SS304 / SS316)
8,Mesh Perforation,0.5mm to 5.0mm (Customizable)
9,Cover Type,Bolted Bonnet / Cover
10,Drain/Blow-off Port,NPT or G Threaded Plug (Standard)
11,Gasket Material,Flexible Graphite + Stainless Steel
12,Bolting Material,ASTM A193 B7 (Studs) / A194 2H (Nuts)
13,Flow Direction,Uni-directional (Arrow cast on body)
14,Max. Temperature,Up to 400∘C (Depending on gasket)
15,Min. Temperature,−29℃
16,Shell Test Pressure,3.75 MPa (37.5 Bar)
17,Filtration Area,Typically 3 to 4 times the pipe cross-section
18,Coating,Blue Epoxy or Heat-Resistant Silver Paint
19,Installation,Horizontal or Vertical (Flow downwards)
20,Maintenance,Inline screen removal without piping disassembly
