C95800 Nickel Aluminum Bronze pipe fittings instrumentation

Detailed Product Introduction

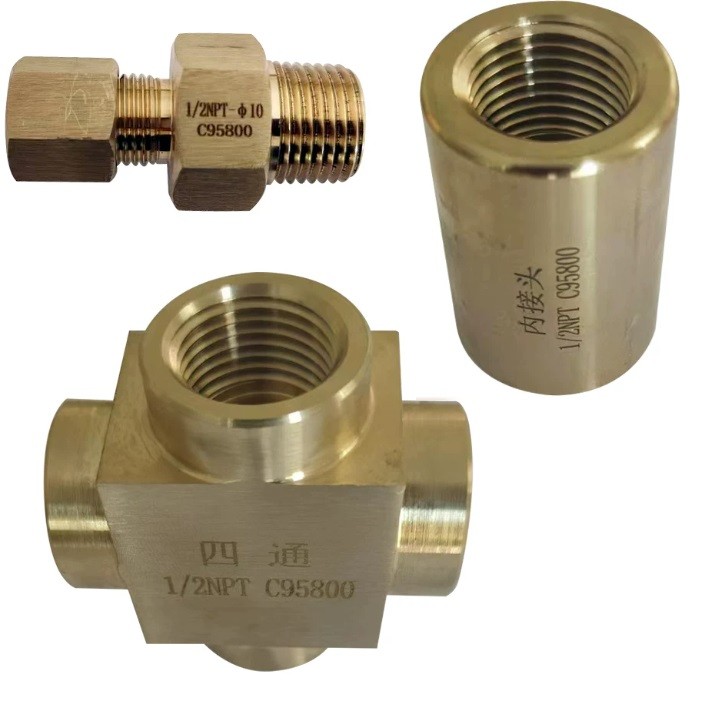

This series of high-precision instrument-grade pipe fittings, multi-port connectors, and filtration units is manufactured from ASTM B148 C95800 Nickel Aluminum Bronze. Renowned for its outstanding structural integrity and remarkable resistance to pitting and bio-fouling in brackish water and saltwater environments, this component group is ideal for offshore oil rigs, shipbuilding, desalination plants, and chemical processing lines. The line includes high-pressure double-ferrule male connectors, four-way female crosses, full-coupling sockets, and compact in-line fluid strainers, all machined with precision CNC threads (such as 1/2" NPT) to guarantee bubble-tight seals and reliable flow management in high-salinity automated systems.

Technical Specifications

• Material Classification: ASTM B148 / ASME SB148 C95800 Nickel Aluminum Bronze (NAB)

• Chemical Composition: Approx. 79% Cu, 9% Al, 4.5% Ni, 4.5% Fe, 1.2% Mn (Optimized for anti-corrosion)

• Fittings Assortment: Male Connectors, Female Crosses (4-Way), Full Couplings, Tees, Elbows, and In-line Strainers

• Thread Specification: 1/2" NPT Female / Male according to ASME B1.20.1 (Other sizes available)

• Compression Tube End: Configured for Double Ferrule Card Sleeve connections (e.g., Φ10mm tube O.D.)

• Pressure Rating (Threaded): Up to 3000 PSI to 6000 PSI for instrumentation class

• Nominal Sizes: DN15 (1/2 Inch) as displayed, scalable from DN6 to DN50

• Filter Element Material: Monel / Stainless Steel 316 / Bronze dual-layer sintered or wire mesh

• Filtration Rating: 40, 80, 100, or 200 mesh options available inside the in-line strainer

• Manufacturing Method: Precision CNC machined from high-density forged blocks or extruded bar stock

• Corrosion Resistance: Ultimate protection against seawater cavitation, crevice corrosion, and marine biofouling

• Tensile Strength: ≥ 585 MPa (Extremely rugged mechanical properties compared to standard brass)

• Yield Strength: ≥ 240 MPa

• Elongation Rate: ≥ 15%

• Temperature Range: Suitable for cryogenic up to elevated temperatures (-196°C to +260°C)

• Applicable Media: Seawater, brackish water, marine brine, hydraulic fluids, waste chemicals, and gases

• Sealing Standard: NPT taper thread tight fit / Metal-to-metal compression sealing

• Marking and Traceability: Permanent laser etching of material grade (C95800), specification (1/2NPT), and flow directions

• Design Standards: Conforms to ASME B16.11 (Forged Fittings), ASME B16.34, and ASTM B150

• Quality Inspection: 100% thread gauge verification and pressure leakage tested under factory protocols
