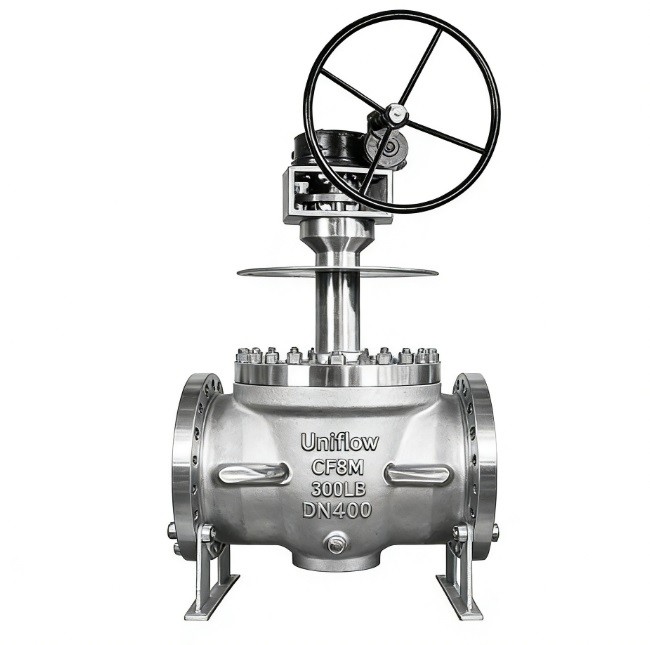

The API 6D Stainless Steel Top Entry Cryogenic Ball Valve is engineered for extreme low-temperature services like LNG and liquid nitrogen. Its top-entry design allows for critical in-line maintenance without disturbing the insulation cold box. Featuring an extended bonnet to protect the stem packing from freezing, it utilizes specialized lip seals and cryogenic treatment of components to ensure bubble-tight shut-off and operational integrity at temperatures as low as -196℃
Technical Attribute Table: Cryogenic Top Entry Ball Valve
1,Design Standard,API 6D / BS 6364 / ASME B16.34
2,Body Material,ASTM A351 CF8M / CF8 / CF3M
3,Trim Material,SS316 / SS316L (Cryogenic Treated)
4,Pressure Class,"ANSI Class 150, 300, 600, 900, 1500"
5,Nominal Size,2" to 24"
6,Bonnet Design,Extended Stem (Gas Column Type)
7,Seat Material,PCTFE (Kel-F) / TFM / Metal-to-Metal
8,Sealing Feature,Pressure Balanced / Self-Relieving Seats
9,Maintenance,In-line Maintenance (Top Access)
10,Fire Safe Design,API 607 / ISO 10497
11,Stem Design,Blow-out Proof & Anti-static
12,Bore Type,Full Bore (Standard)
13,Venting,Cavity Pressure Relief (Upstream Hole)
14,Operation,Gearbox / Pneumatic / Electric Actuator
15,Temperature Range,−196℃ to +120℃
16,Shell Test,1.5× Rated Pressure
17,Cryogenic Test,Per BS 6364 (Liquid Nitrogen)
18,Tightness Class,ISO 5208 Rate A / MSS SP-61
19,Stem Packing,Flexible Graphite / Kel-F
20,Mounting Pad,ISO 5211
