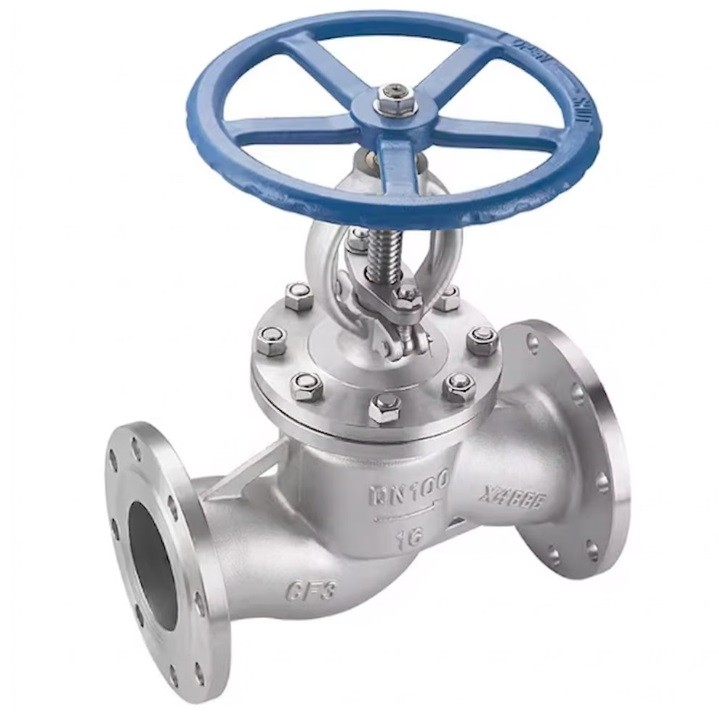

The AISI 304L Stainless Steel Flanged Globe Valve Type B1 Sealing Surface PN16 is a corrosion-resistant flow control valve designed for moderate-pressure industrial applications. The body is cast from AISI 304L (1.4307), a low-carbon variant of 304 stainless steel that offers enhanced resistance to intergranular corrosion after welding. It features a Type B1 sealing surface, which refers to a metallic seat and disc combination—typically both surfaces hardfaced with stellite or similar wear-resistant alloy—ensuring durable, leak-tight shut-off. The PN16 rating makes it suitable for Application: alcohol, nitrogene, compressed air, condensate,
Technical Attributes & Specifications
1. **Body Material:** AISI 304L (EN 1.4306) Low-carbon Stainless Steel.
2. **Pressure Rating:** PN16 (1.6 MPa).
3. **Sealing Surface:** Type B1 (Raised Face) per EN 1092-1.
4. **Connection Type:** Flanged ends for standardized installation.
5. **Design Standard:** EN 13709 or DIN 3356.
6. **Face-to-Face Dimension:** EN 558-1 Series 1 (DIN 3202 F1).
7. **Trim Material:** Pure AISI 304L for uniform corrosion resistance.
8. **Stem Type:** Outside Screw and Yoke (OS&Y) with rising stem.
9. **Bonnet Design:** Bolted bonnet with high-grade PTFE or Graphite gasket.
10. **Stem Packing:** PTFE for chemical inertness or flexible graphite.
11. **Flow Direction:** Unidirectional (indicated by arrow on the body).
12. **Operation:** Manual handwheel (impact-resistant cast iron or steel).
13. **Disc Design:** Plug-type disc for linear throttling characteristics.
14. **Corrosion Resistance:** Excellent against nitric acid and organic liquids.
15. **Maximum Operating Temperature:** Up to **400°C** (limited by packing/gasket).
16. **Leakage Class:** Rate A (Zero leakage) according to EN 12266-1.
17. **Top Flange:** Often compatible with ISO 5211 for actuator mounting.
18. **Testing Standards:** Shell and seat pressure tests per API 598 or EN 12266.
19. **Casting Quality:** Investment casting (lost wax) for superior surface finish.
20. **Applications:** Alcohol, nitrogene, compressed air, condensate,Nitric acid production, textile dyeing, and demineralized water.
