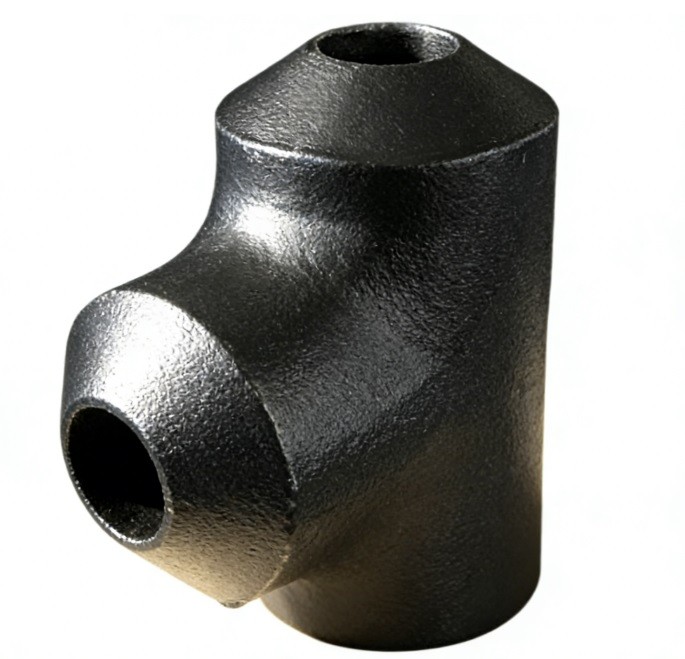

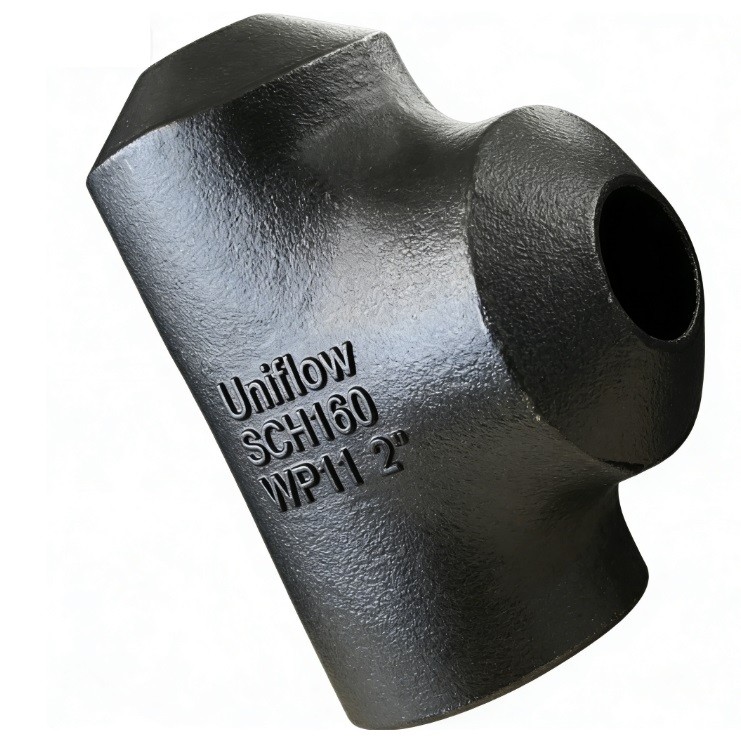

The ASTM A234 WP11 SCH160 Equal Tee is a high-pressure, low-alloy "Chrome-Moly" fitting designed for severe service. Containing 1.25% Chromium and 0.5% Molybdenum, it offers superior creep strength and heat resistance. The SCH160 wall thickness provides the heavy-duty reinforcement needed for extreme pressure loads. This Equal Tee ensures a seamless 90° branch with a uniform diameter, utilized primarily in high-pressure steam headers and refinery catalytic units.
Technical Attributes: WP11 SCH160 Equal Tee
Material Grade,ASTM A234 WP11 (CL1 or CL2)
Fitting Type,Equal Tee (Run Size = Branch Size)
Wall Thickness,Schedule 160 (High Pressure)
Material Category,Low-Alloy Chrome-Moly Steel
Design Standard,ASME B16.9
Manufacturing Type,Seamless or Welded (W)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,"1/2"" to 48"" (DN15 - DN1200)"
Chromium Content,1.00%–1.50%
Molybdenum Content,0.44%–0.65%
Heat Treatment,Annealed / Normalized and Tempered
Tensile Strength,≥415 MPa (60 ksi)
Yield Strength,≥205 MPa (30 ksi)
Hardness,≤197 HBW
Testing Standard,"Hydrostatic, UT, MT, RT (for welded)"
Surface Treatment,Anti-rust Oil / Black Paint
Certification,EN 10204 3.1 / MTR
Application,High-Pressure Steam / Petrochemical
