Pneumatic high pressure ball valve forged steel

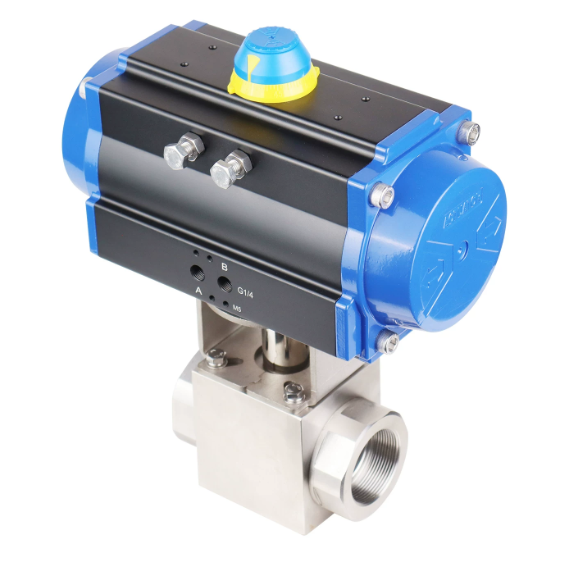

The pneumatic high pressure forged steel ball valve is specifically engineered to manage high velocity liquids and gases in critical high pressure infrastructure Utilizing a solid forged steel block body design it minimizes structural stress concentration while maximizing mechanical burst resistance The valve is coupled with a compact yet high output aluminum pneumatic actuator providing immediate quarter turn automation capable of performing flawlessly under constant cycling Its heavy wall threaded connection ends guarantee a leak tight piping seal making this automation package highly suitable for severe hydraulic oil systems high pressure gas manifolds and industrial processing operations

Technical Specifications

• Valve Design Classification Pneumatic Actuated Block Type High Pressure Ball Valve

• Body Material Construction Premium Forged Carbon Steel or Stainless Steel Grader

• Actuator Operational Drive Heavy Duty Rack and Pinion Aluminum Pneumatic Actuator

• Pneumatic Control Air Supply 0.4 to 0.7 MPa Clean Dry Compressed Air

• Maximum Rated Fluid Pressure 60 MPa Nominally equivalent to Ultra High Pressure Rating

• Main Pipeline Connection Type Female Threaded NPT or BSPT Internal Screw Joint

• Internal Sealing Seat Material High Density Wear Resistant PEEK or Delrin Polymer Seats

• Ball Component Engineering Solid Stainless Steel Ball Precision Ground and Mirror Polished

• Port Diameter Profile Full Bore or Standard Bore Flow Path Based on Flow Requirement

• Stem Configuration Concept Explosion Proof Internally Loaded Blow out Proof Stem Layout

• Actuator Housing Finish Corrosion Resistant Anodized Body with Durable Epoxy Coated End Caps

• Visual Position Indicator Top Mounted Bright Yellow and Blue Visual Travel Indicator

• Solenoid Valve Interface Standard NAMUR Interface for Direct Accessory Mounting

• Operating Ambient Temperature Minus 20 to 80 degrees Celsius for Standard Actuator

• Maximum Fluid Media Temperature 150 degrees Celsius with High Performance PEEK Seats

• Emergency Mechanical Override Hexagonal Shaft Drive Ready for Manual Intervention

• Manufacturing Inspection Standard Factory Hydrostatic Shell and High Pressure Seat Bubble Tight Tests

• Surface Coating Protection Anti Rust Chemical Phosphating or Black Oxide Industrial Finish

• Primary Media Suitability Hydraulic Fluid Mineral Oil High Pressure Gas Water and Air

• Quality Assurance Guidelines Fabricated and Tested Under Certified ISO 9001 Regulatory Control
