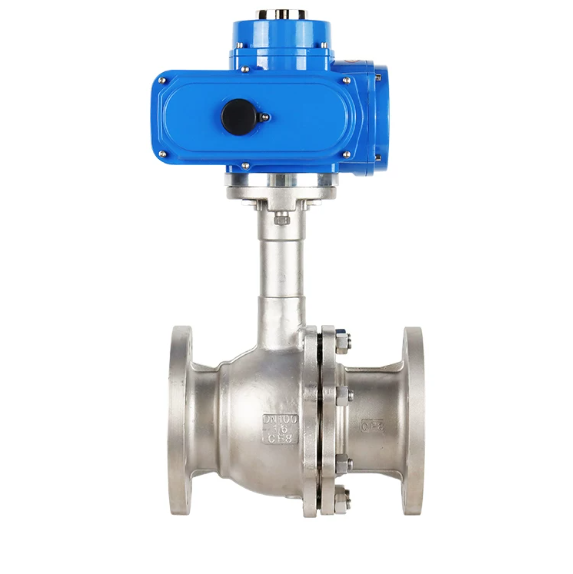

Electric cryogenic ball valve CF8

This industrial grade electric cryogenic ball valve is fabricated from high quality CF8 stainless steel and purposefully engineered for liquefied natural gas liquid nitrogen liquid oxygen and liquid carbon dioxide systems It features an extended bonnet design that effectively keeps the stem packing away from extreme cold media to prevent freezing Operational automation is provided by a high torque smart motorized actuator ensuring quick and secure isolation within automated cryogenic storage networks

Download

The DQ941F series electric cryogenic ball valve is specially designed to manage fluids under extreme deep freeze temperature conditions common to industrial gas liquefaction plants Utilizing an automated top mounted electric actuator along with a high structural grade CF8 stainless steel body this valve assembly delivers reliable low temperature performance The long extended stem bonnet configuration acts as a reliable thermal barrier creating a gas column that insulates the packing box from freezing media structural collapse The precision machined internal components ensure a bubble tight bi directional seal making it an indispensable component for cryogenic storage transport terminals and aerospace gas distribution lines

Technical Specifications

Valve Design Classification Electric Actuated Extended Bonnet Deep Freeze Cryogenic Ball Valve
Body Material Standard Premium Cast Stainless Steel CF8 ASTM A351 Specification
Actuator Operational Drive Heavy Duty Intelligent Motorized Electric Actuator with Positioner
Stem Insulation Layout Gas Column Extension Bonnet Design to Guard Packing Seal
Nominal Pipe Dimension DN 100 or 4 inch equivalent flanged line size
Main Pipe Pressure Rating PN 16 Nominal Working Pressure 1.6 MPa equivalent
Internal Sealing Seat Material Low Temperature Tough Kel F or Special Filled PTFE Seats
Ball Structural Profile Solid Stainless Steel Ball Precision Spherical Ground and Polished
Main Pipeline Connection RF Raised Face Flanged Ends for Gas Tight Joint
Main Flange Standard EN 1092 1 DIN 2501 Flange Clearance Dimensions
Stem Mechanical Safety Blow out Proof High Strength Internal Seat Stem Profile
Stem Packing Material Die Formed Low Temperature Packing Rings with Spring Energized Seals
Body Bonnet Gasket Spiral Wound Stainless Steel 304 with Non Freezing Composites
Flow Geometry Configuration Full Port Flow Path for Minimal Pressure Drop and High Cv
Power Supply Voltage 220 V AC or 380 V AC Multi Phase Power Input Availability
Actuator Weather Protection IP 67 Grade Dustproof and Waterproof Automated Housing Sealing
Emergency Override Drive Manual Handwheel Mechanical Interface for Emergency Field Operation
Cryogenic Cleaning Process Strict Clean Room Degreasing and Oil Free Packing Protocols
Primary Media Suitability Liquefied Natural Gas Liquid Nitrogen Liquid Oxygen Liquid Carbon Dioxide
Pressure Testing Verification Cryogenic Low Temperature Liquefied Gas Shell and Seat Leakage Evaluation
Quality Assurance Certification Manufactured and Verified under Certified ISO 9001 Factory Codes
