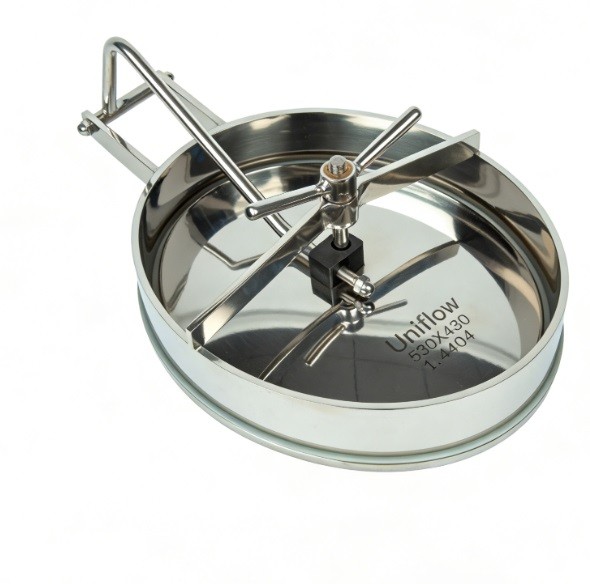

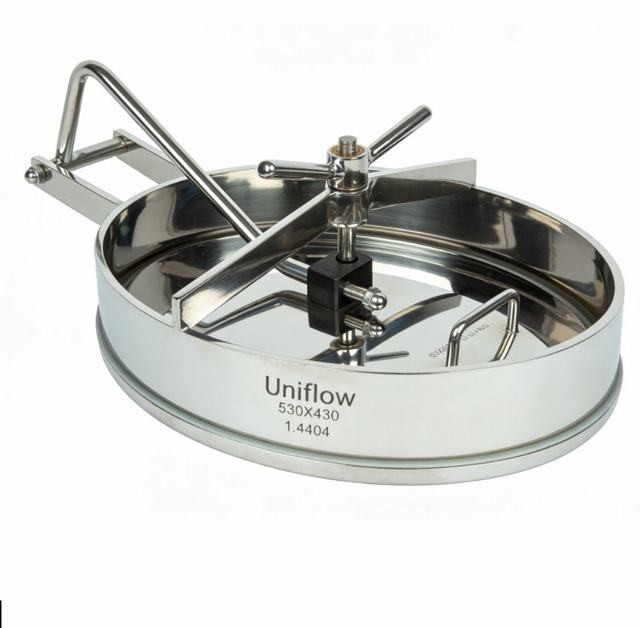

Hygienic Oval Manhole Covers are specialized tank access points designed primarily for inward-opening applications. Their unique elliptical shape allows the cover to be turned and removed through the opening it seals. This design uses internal tank pressure to tighten the seal against the gasket, making them exceptionally safe for pressurized liquid storage. Made from 316L or 304 Stainless Steel, they are common in wine, dairy, and brewing for side-wall entry.
Technical Attributes: Hygienic Oval Manhole Cover
Component Name,Oval Inward-Opening Manway
Material Construction,AISI 304 or 316L Stainless Steel
Standard Dimensions,435×335 mm or 535×435 mm (Typical)
Opening Direction,Inward-Opening (Swings inside the tank)
Max Pressure Rating,Typically 2.0−5.0 Bar (Size dependent)
Gasket Profile,Self-sealing Lip or Flat Seal
Gasket Material,"EPDM (Standard), Silicone, or FKM (Viton)"
Internal Finish (Ra),≤0.6μm (25μin) – Ground and Polished
External Finish (Ra),Satin or Mirror Polish
Handle Type,Single or Dual Stainless Steel Cross-bar / Handwheel
Neck Frame Height,65mm−160mm (Based on tank wall thickness)
Standard Compliance,"FDA (Gaskets), 3-A, PED 2014/68/EU"
