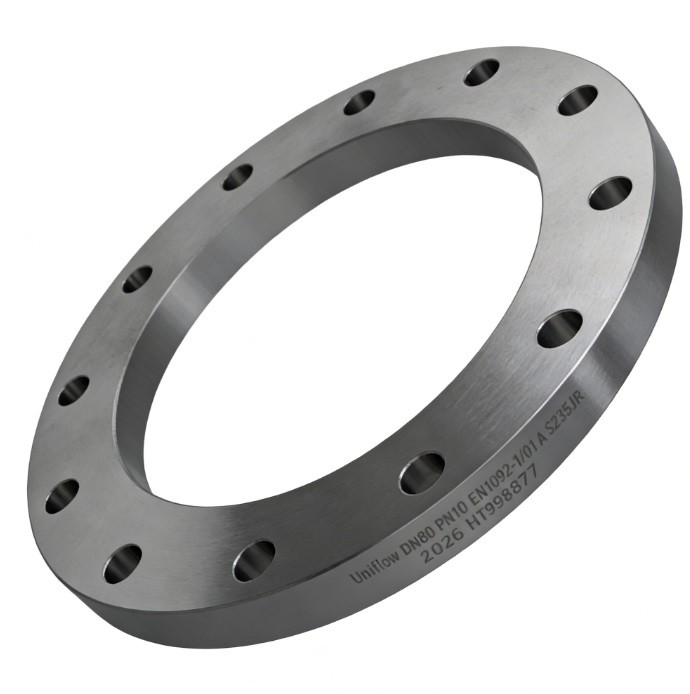

EN 1092-1 Type 01 S235JR plate flanges are the most common solution for non-pressure applications and general utility piping. As a structural-grade carbon steel, S235JR offers excellent machinability and weldability at a lower price point than pressure-vessel grades. These flat-ring flanges are slipped over the pipe and fillet welded, providing a reliable connection for water treatment, HVAC, and low-pressure irrigation. They are the go-to standard for industrial projects where cost-efficiency is a priority.
technical attributes
Standard: EN 1092-1
Flange Type: Type 01 (Plate)
Material Grade: S235JR
Material Number: 1.0038
Pressure Rating: PN 6 to PN 40
Size Range: DN 10 to DN 2000
Manufacturing: Plate Cut or Forged
Facing Type: Type A (Flat Face)
Surface Finish: Stock Finish
Carbon Content: Max 0.17 percent
Manganese Content: Max 1.40 percent
Yield Strength: Min 235 MPa
Tensile Strength: 360 to 510 MPa
Impact Energy: 27 Joules at 20C
Hardness: 120 to 160 HBW
Connection: Double Fillet Weld
Certification: EN 10204 2.2 or 3.1
Primary Industry: Water and General Utility
