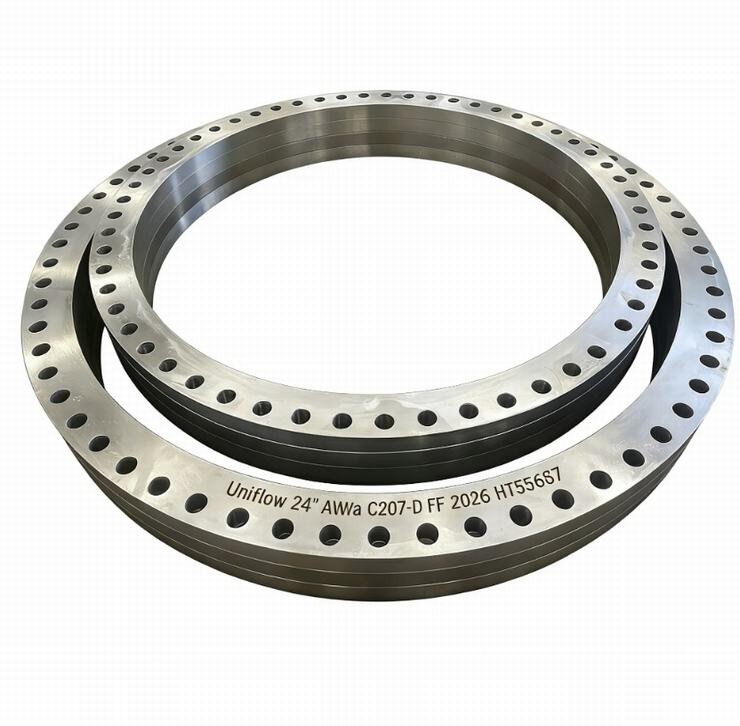

AWWA C207-2007 defines forged steel plate flanges specifically for waterworks service. These flanges are designed for low-pressure applications, such as potable water, wastewater, and slurry piping. Unlike ASME high-pressure standards, AWWA C207 focuses on cost-effective, large-diameter solutions for plant piping. Typically manufactured from hot-rolled carbon steel, these plate flanges (Class B, D, or E) are slipped over the pipe and fillet welded, ensuring a reliable seal for municipal infrastructure.
technical attributes
Standard: AWWA C207-2007
Flange Type: Plate (Slip-On)
Material: Forged Carbon Steel
Material Grades: A36 / A283 Grade C
Pressure Class: Class B / D / E / F
Class D Rating: 150-175 psi (Water)
Class E Rating: 275 psi (Water)
Size Range: 4" to 144"
Manufacturing: Forged or Plate Cut
Facing Type: Flat Face (FF)
Drilling: Matches ASME B16.1 / B16.5
Yield Strength: Min 30,000 to 36,000 psi
Tensile Strength: Min 58,000 psi
Carbon Content: Max 0.29 percent
Weldability: Excellent (Low Carbon)
Connection: Double Fillet Weld
Certification: ASTM A105 / A36 MTR
Primary Industry: Municipal Waterworks
Service Medium: Potable Water / Sewage
