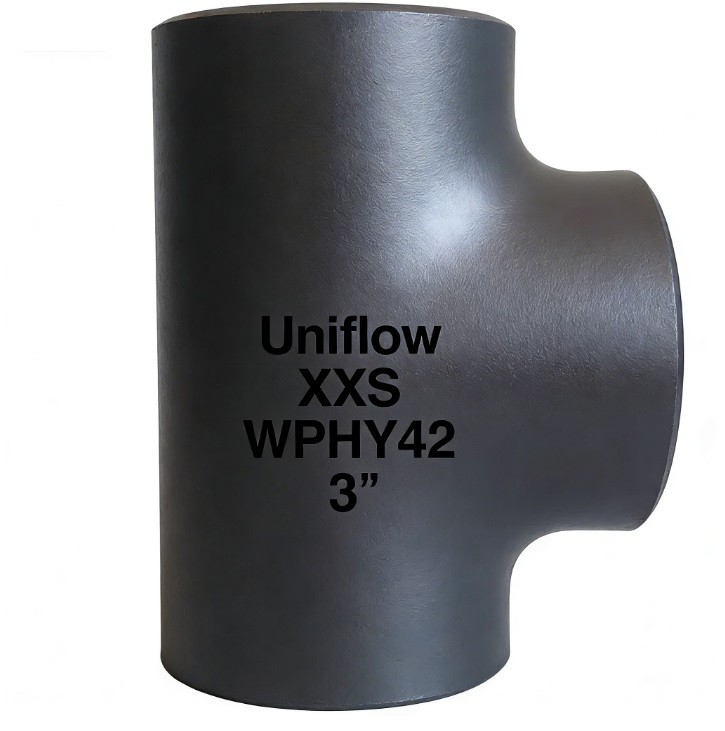

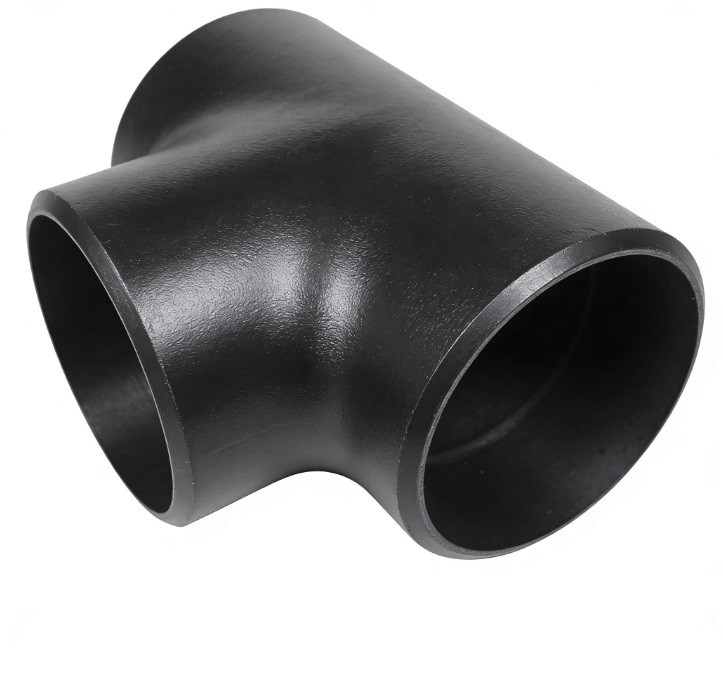

The ASTM A860 WPHY42-80 Seamless Tees are high-yield wrought fittings designed for high-pressure transmission pipelines. While primarily high-strength carbon steel, they are engineered for "cryogenic" or low-temperature robustness through mandatory Charpy V-Notch testing (typically at -46℃). The Seamless construction provides maximum safety for high-stress gas and oil branches. These tees match the yield strengths of API 5L X42 to X80 line pipes, ensuring structural continuity in harsh environments.
Technical Attributes: A860 WPHY42/52/60/70/80 Seamless Tee
Material Grade,"ASTM A860 WPHY 42, 52, 60, 65, 70, 80"
Fitting Type,Equal Tee or Reducing Tee
Manufacturing,Seamless (Hot Forged / Cold Formed)
Design Standard,MSS SP-75 / ASME B16.9
Yield Strength,290–550 MPa (42–80 ksi)
Tensile Strength,415–825 MPa (Grade Dependent)
Impact Testing,Charpy V-Notch (27J at −46∘C / −50∘F)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,1/2" to 24" (Seamless Limit)
Wall Thickness,Matches API 5L Line Pipe Schedules
Carbon Equivalent,CE≤0.42% to 0.45% (Max)
Heat Treatment,"Normalized, Quenched, and Tempered"
Hardness,≤197 HBW (Higher for WPHY70/80)
Manufacturing Process,Mandrel Forming / Hydraulic Bulging
Testing Standard,"100% NDT, Hydrostatic, Tensile, Impact"
Surface Finish,Black Bitumen / FBE Coating / Anti-rust Oil
Traceability,Heat Number & Grade Hard Stamped
Certification,EN 10204 3.1 / MTR
Applicable Service,"High-Pressure Gas/Oil, Arctic Pipelines"
