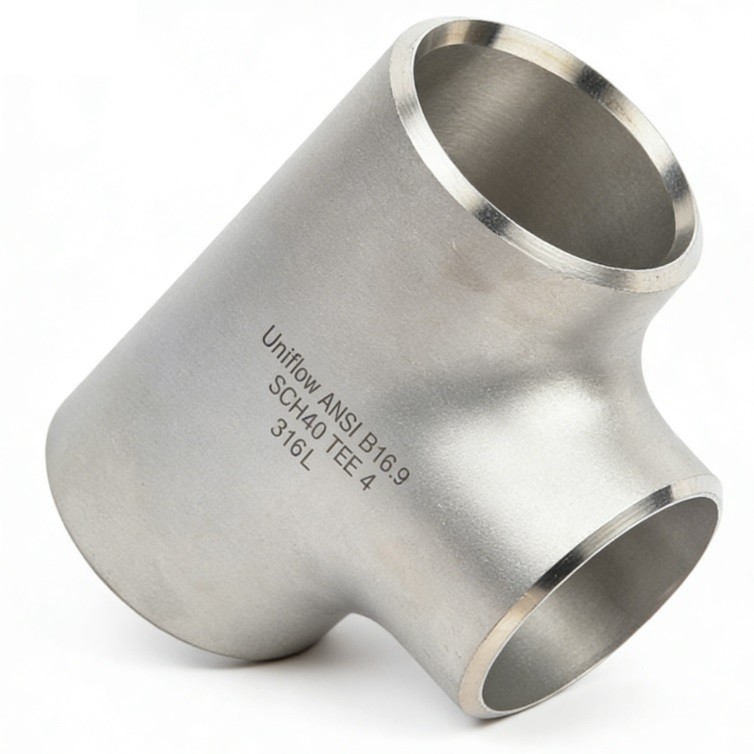

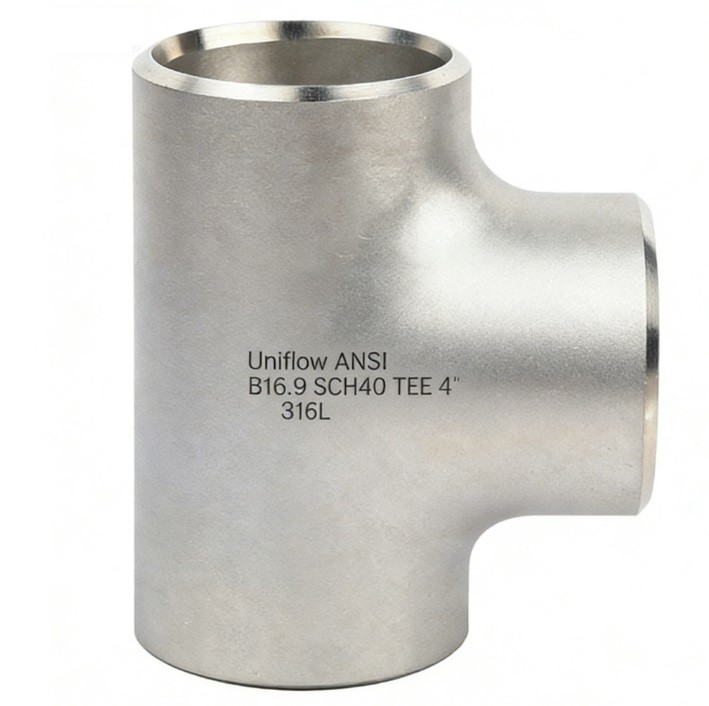

The ASME B16.9 Stainless Steel 316L Straight Tee is a high-integrity fitting used to create a 90° branch from a main pipeline. With "Straight" (Equal) geometry, the branch and header share the same diameter. Forged from low-carbon 316L, it offers exceptional resistance to chloride-induced pitting and intergranular corrosion. The SCH40 wall thickness provides a robust pressure rating, making it the preferred choice for marine, pharmaceutical, and chemical processing where leak-proof, high-purity branch connections are mandatory.
Technical Attributes: SS 316L SCH40 Straight Tee
Standard,ASME B16.9 / ANSI B16.9
Material Grade,ASTM A403 WP316L (Low Carbon)
Fitting Type,Straight Tee (Equal Tee)
Schedule,SCH 40 / SCH 40S
Manufacturing,Seamless or Welded (WP-W / WP-WX)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,1/2" to 48" (DN15 - DN1200)
Chromium Content,16.0%–18.0%
Nickel Content,10.0%–14.0%
Molybdenum Content,2.0%–3.0% (Superior Pitting Resistance)
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170 MPa (25 ksi)
Heat Treatment,Solution Annealed & Water Quenched
Testing Standard,"PMI, Radiographic, Hydrostatic, UT"
Surface Finish,"Pickled, Passivated, or Bead Blasted"
Hardness,≤187 HBW
Certification,EN 10204 3.1 / MTR
Primary Use,"Chemical, Marine, and Sanitary Piping"
