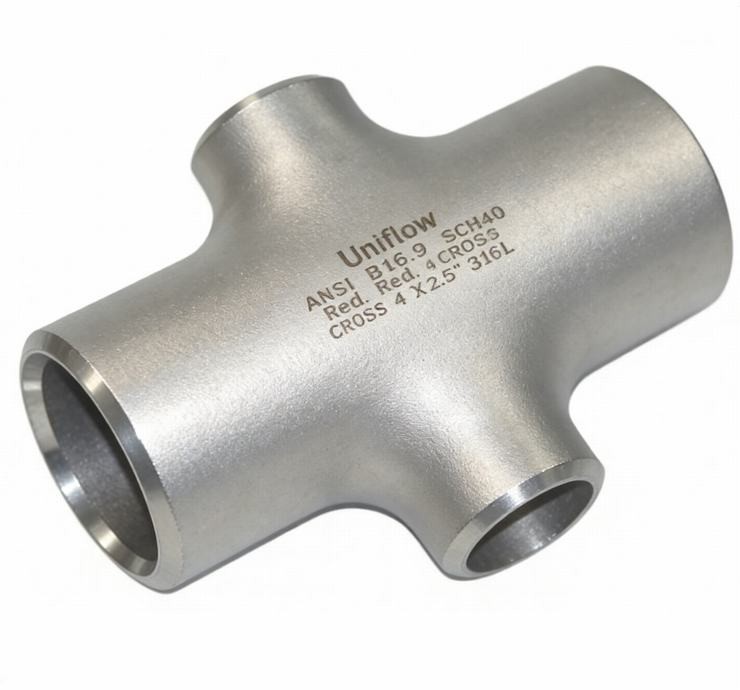

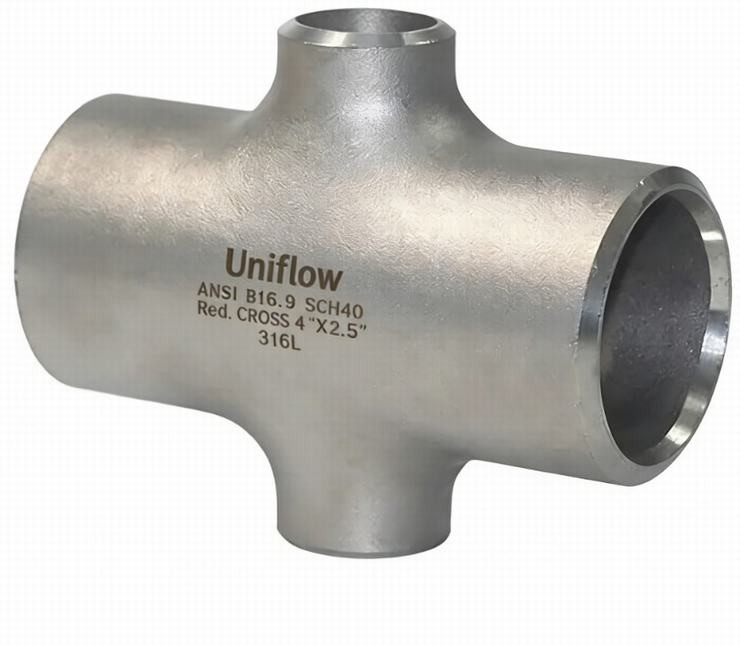

The ASME B16.9 Stainless Steel Reducing Cross is a four-way branch fitting designed to connect pipes of different diameters at a single intersection. Forged from high-grade stainless steel (304L/316L), it allows for a main header to feed smaller branch lines while maintaining 90° symmetry. The STD wall thickness ensures high pressure integrity for chemical and pharmaceutical manifolds. Its butt-weld design provides a permanent, leak-proof joint, making it superior to threaded fittings in high-vibration and corrosive services.
Technical Attributes: Stainless Steel Reducing Cross
Standard,ASME B16.9 / ANSI B16.9
Material Grades,"ASTM A403 WP304/L, WP316/L, WP321, WP347"
Fitting Type,Reducing Cross (Unequal Outlets)
Wall Thickness,STD (Standard Weight)
Manufacturing,Seamless or Welded (WP-W / WP-WX)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,1"×1"×1/2" to 48"×48"×44"
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quenching
Testing Standard,"PMI, Radiographic, Hydrostatic, UT"
Surface Finish,"Pickled, Passivated, or Bead Blasted"
Hardness,≤187 HBW
Certification,EN 10204 3.1 / MTR
Primary Use,Complex Distribution Manifolds
