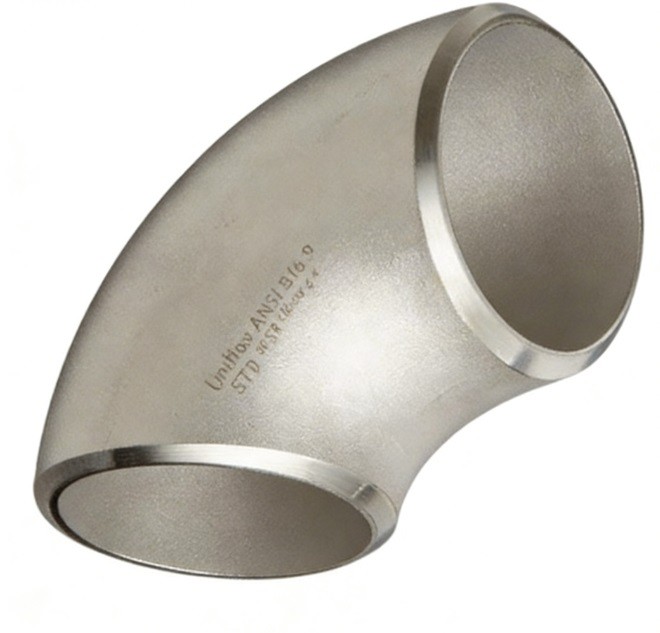

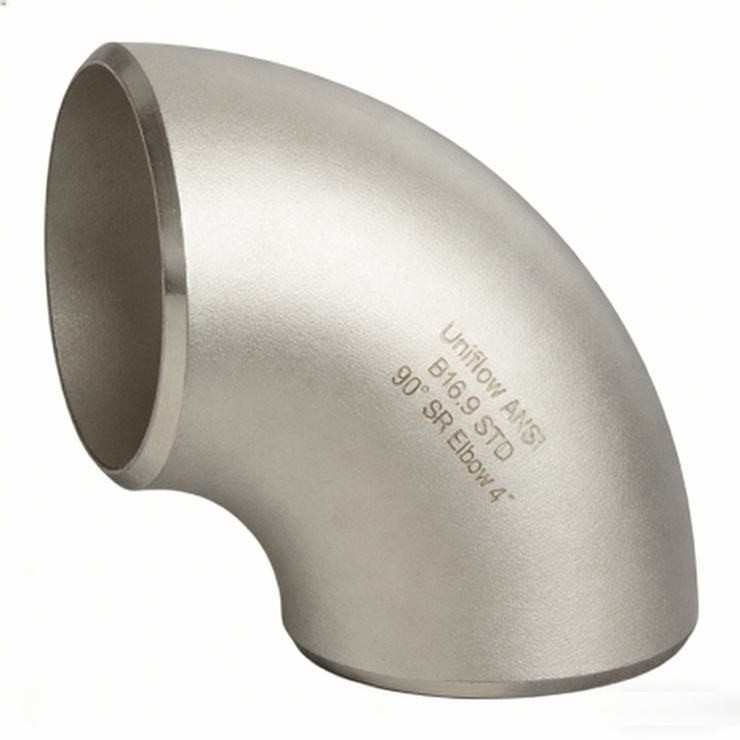

The ANSI B16.9 Stainless Steel 90° Short Radius (SR) Elbow is a compact fitting designed for tight spaces where a standard long radius elbow won't fit. With a centerline radius equal to the nominal pipe size (R=1D), it allows for sharp directional changes in cramped piping skids or vessel internals. Forged from high-grade 304L or 316L, it offers excellent corrosion resistance. While it induces higher pressure drop than LR types, its space-saving geometry is indispensable for modular industrial designs.
Technical Attributes: Stainless Steel 90° SR Elbow
Standard,ANSI/ASME B16.9
Material Grades,"ASTM A403 WP304/L, WP316/L, WP321, WP347"
Angle,90 Degree
Radius Type,Short Radius (SR) - R=1.0×NPS
Manufacturing,Seamless or Welded (WP-W / WP-WX)
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range," to 48"" (SR starts from 1"" NPS)
Wall Thickness,"SCH 5S, 10S, 40S, 80S"
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Surface Finish,"Pickled, Passivated, or Sand Blasted"
Heat Treatment,Solution Annealing & Water Quench
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Testing Standard,"PMI, Radiographic (for welded), Hydrostatic"
Hardness,≤187 HBW (Typical for 304/316)
Certification,EN 10204 3.1 / MTR
Primary Use,"Compact Skids, Marine, Engine Rooms"
