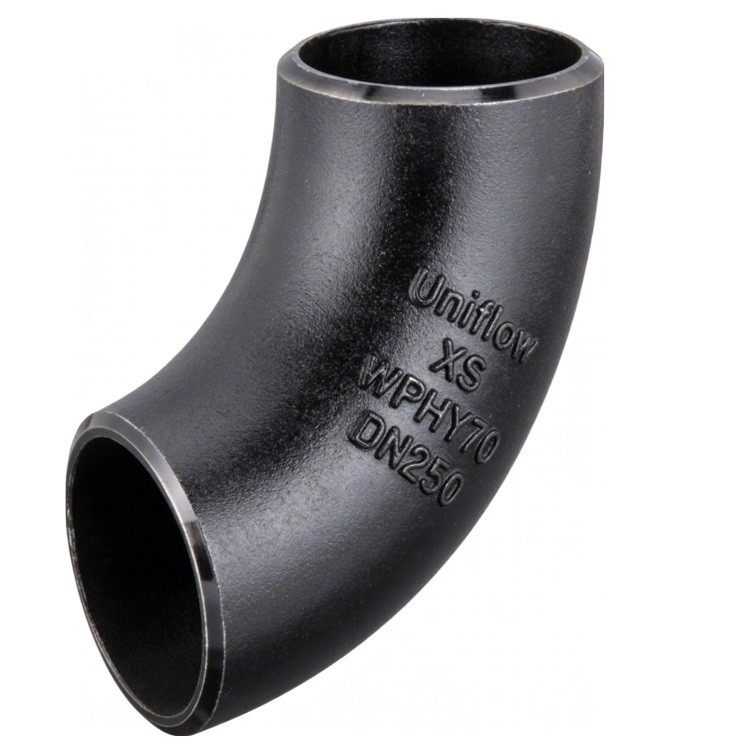

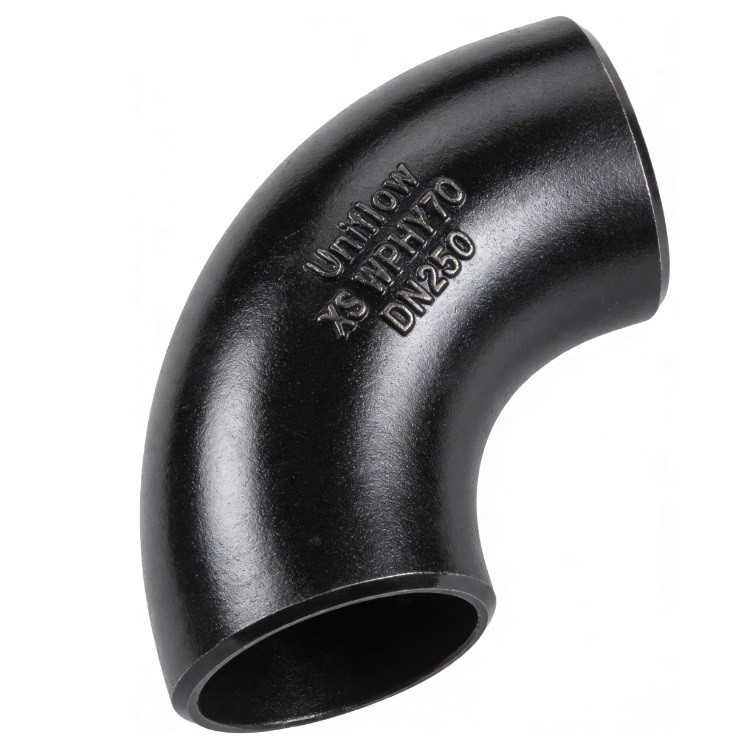

The ASTM A860 WPHY70 LR 90° Elbow is a peak-performance wrought fitting for high-pressure transmission lines. Matching API 5L X70 pipe, it provides a massive minimum yield strength of 70,000 PSI. Its Long Radius (LR) design ($1.5D$) ensures high-efficiency flow with minimal pressure drop. These elbows are strictly tested for notch toughness, making them the standard for large-diameter, high-stress pipelines in arctic or seismically active regions.
Technical Attributes: ASTM A860 WPHY70 LR 90° Elbow
Material Grade,ASTM A860 WPHY70 (High-Yield Carbon Steel)
Fitting Type,90 Degree Long Radius (LR) Elbow
Yield Strength,"≥485 MPa (70,000 PSI)"
Tensile Strength,"565–760 MPa (82,000–110,000 PSI)"
Center-to-End Dim,1.5× Nominal Pipe Size (1.5D)
Design Standard,MSS SP-75 / ASME B16.9
End Connection,Butt Welding (BW)
End Preparation,Beveled Ends per ASME B16.25
Size Range,16" to 60" (Large Diameter Specialists)
Wall Thickness,Matches API 5L X70 Pipe Schedules
Impact Testing,Charpy V-Notch (27J at −46∘C / −50∘F)
Heat Treatment,Quenched and Tempered
Carbon Equivalent,CE≤0.45% (For field weldability)
Manufacturing,Seamless or Welded (100% RT for welds)
Hardness,≤235 HBW
Testing Standard,"Hydrostatic, UT, MT, RT, Tensile"
Surface Finish,Black Bitumen / FBE Coating / Anti-rust Oil
Certification,EN 10204 3.1 / MTR
Traceability,Heat Number & Grade Hard Stamped
Applicable Service,High-Pressure Gas & Oil Transmission
