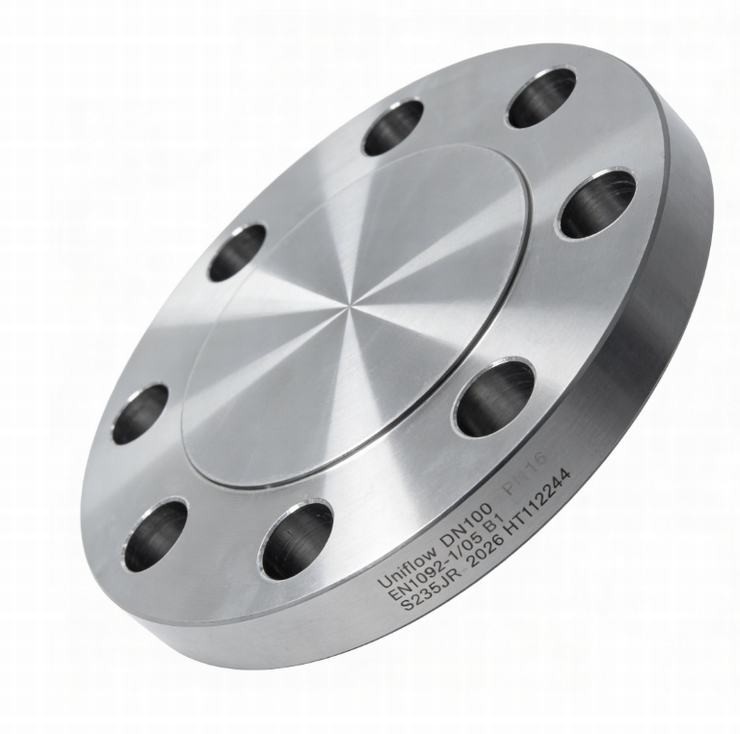

EN 1092-1 Type 05 PN16 blind flanges in S235JR are the standard choice for sealing piping systems in non-critical, low-pressure applications. As a structural-grade carbon steel, S235JR provides an economical solution for water treatment, HVAC, and general utility lines. These solid steel discs are bolted to the flange face to terminate flow, offering a secure, pressure-tight seal that is easily removed for system maintenance. They are favored for their excellent machinability and cost-efficiency in urban infrastructure.
Technical attributes
Standard: EN 1092-1
Flange Type: Type 05 (Blind)
Material Grade: S235JR
Material Number: 1.0038
Pressure Rating: PN16
Size Range: DN 10 to DN 2000
Manufacturing: Forged or Plate Cut
Facing Type: Type B1 (Raised Face)
Surface Finish: 3.2 to 12.5 micrometers
Carbon Content: Max 0.17 percent
Manganese Content: Max 1.40 percent
Yield Strength: Min 235 MPa
Tensile Strength: 360 to 510 MPa
Impact Energy: 27 Joules at 20C
Hardness: 120 to 160 HBW
Connection: Bolted with Gasket
Certification: EN 10204 2.2 or 3.1
Service Environment: Non-corrosive / Utility
