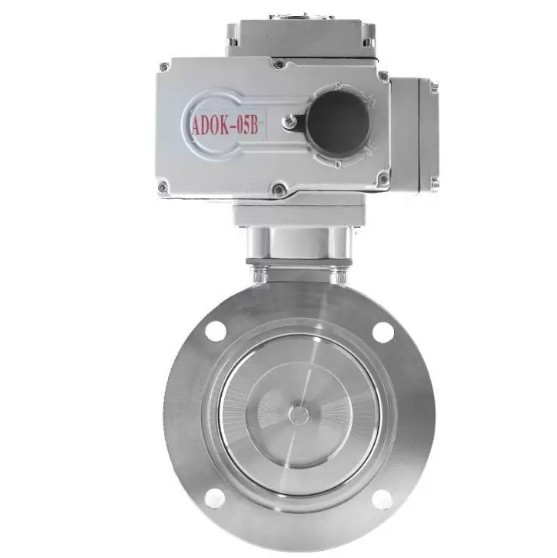

This premium electric high vacuum butterfly valve is engineered from high-grade 304 stainless steel, ensuring exceptional durability and superior corrosion resistance in demanding industrial environments. Featuring a high-performance GID series actuator, it delivers precise negative pressure control and reliable airtight sealing. Designed with a compact wafer/flanged structure, it is ideal for vacuum piping networks, semiconductor manufacturing, chemical processing, and advanced laboratory systems requiring absolute leakage prevention.
This electric high vacuum butterfly valve utilizes an automated actuator to achieve rapid, tight shut-off and modulating control in negative pressure and ultra-high vacuum piping systems.
Technical Specifications:
Valve Type: High Vacuum Butterfly Valve
Actuator Type: Electric / Motorized (GID Series)
Body Material: 304 Stainless Steel (CF8)
Disc Material: 304 Stainless Steel
Sealing Material: High-performance FKM / Viton
Connection Type: Wafer / Flanged
Applicable Media: Air, Inert Gases, Weak Corrosive Fluids
Pressure Range: Negative Pressure to Positive Pressure
Vacuum Leak Rate: Under 1.3 x 10⁻⁴ Pa·L/s
Working Temperature: Standard -20°C to +150°C
Power Supply: AC 220V / AC 110V / DC 24V Optional
Control Signal: On/Off Type or 4-20mA Modulating
Protection Class: IP67 Waterproof and Dustproof
Operation Angle: 0 to 90 Degrees
Duty Cycle: Heavy Duty Industrial Grade
Manual Override: Equipped with Manual Handwheel/Hex Mechanism
Position Indicator: Visual Mechanical Pointer Included
Surface Treatment: Polished Smooth Finish
Application Fields: Vacuum Coating, Semiconductor, Metallurgy
Design Standard: Vacuum Equipment Compliance Standards
