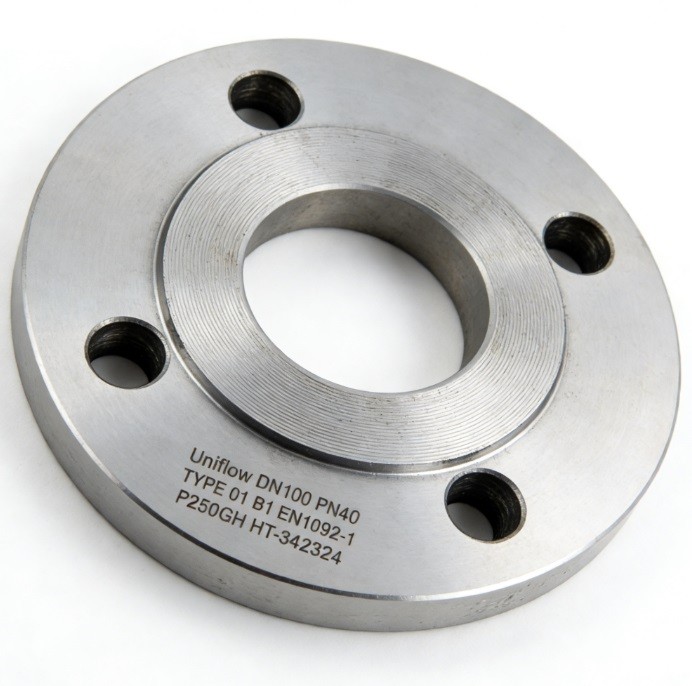

EN1092-1 Type 01 Slip-On flanges in P245GH and P250GH are the European standard for pressure-bearing carbon steel systems. These grades are high-temperature structural steels with excellent weldability and toughness. Designed for PN25 and PN40 pressure ratings, they feature a flat plate design that slides over the pipe for double fillet welding. These flanges are vital in European boiler, heat exchanger, and power plant construction, ensuring safety and compliance with the Pressure Equipment Directive (PED)
Technical Attributes
Standard: EN 1092-1
Flange Type: Type 01 Slip-On Plate
Material Grade: P245GH or P250GH
Steel Number: 1.0460 / 1.0432
Pressure Rating: PN 25 and PN 40
Size Range: DN 10 to DN 2000
Facing Type: Type B1 Raised Face
Surface Finish: 3.2-12.5um Ra
Manufacturing: Forged or Plate Cut
Connection: Double Fillet Weld
Carbon Content: Max 0.20 percent
Yield Strength: Min 250 MPa
Tensile Strength: 410-540 MPa
Heat Treatment: Normalized
Service Temperature: Max 450C
Compliance: PED 2014/68/EU
Certification: EN 10204 3.1
Primary Industry: Power and Heat
