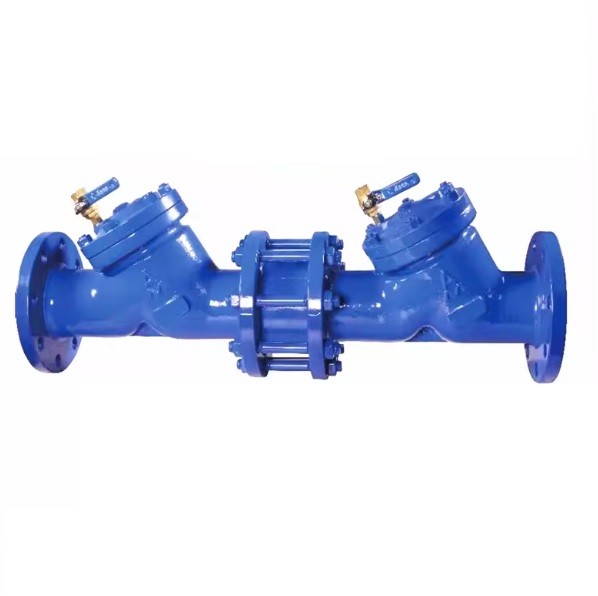

A Ductile Iron Double Check Valve (DC) Backflow Preventer protects potable water from low-hazard cross-connections. It features two independent, spring-loaded check valves in a durable, epoxy-coated ductile iron body. Compact and reliable, it prevents back-siphonage and backpressure in fire lines and irrigation. While it lacks the relief valve of an RPZ, its low pressure drop makes it ideal for high-flow systems.
Technical Attributes
Body Material,Ductile Iron (ASTM A536)
Coating,Fusion Bonded Epoxy (NSF Approved)
Connection Size,2-1/2" to 12" (Typical)
Connection Type,Flanged or Grooved
Max Pressure,175 PSI
Max Temperature,140°F (60°C)
Check Valves,Two Independent Modules
Seat Material,NBR or EPDM Rubber
Springs,Stainless Steel (300 Series)
Check Seats,Replaceable Noryl™ or Bronze
Test Cocks,4 Side-Mounted Ball Valves
Standard,ASSE 1015 / AWWA C510
Approvals,UL Listed / FM Approved
Flow Orientation,Horizontal or Vertical
Hazard Level,Non-Health Hazard (Low)
Lead Content,Lead-Free Compliant
Weight Class,Schedule 40 Compatible
Maintenance,Top-Entry Access
