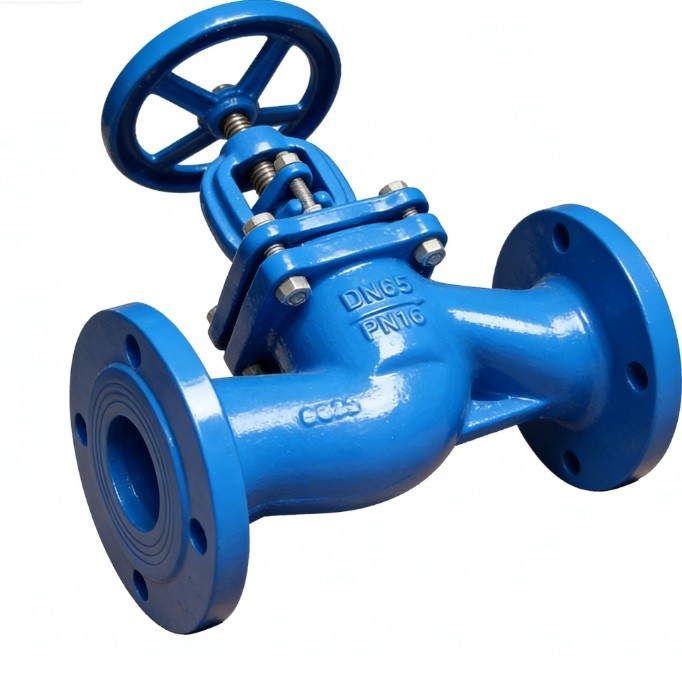

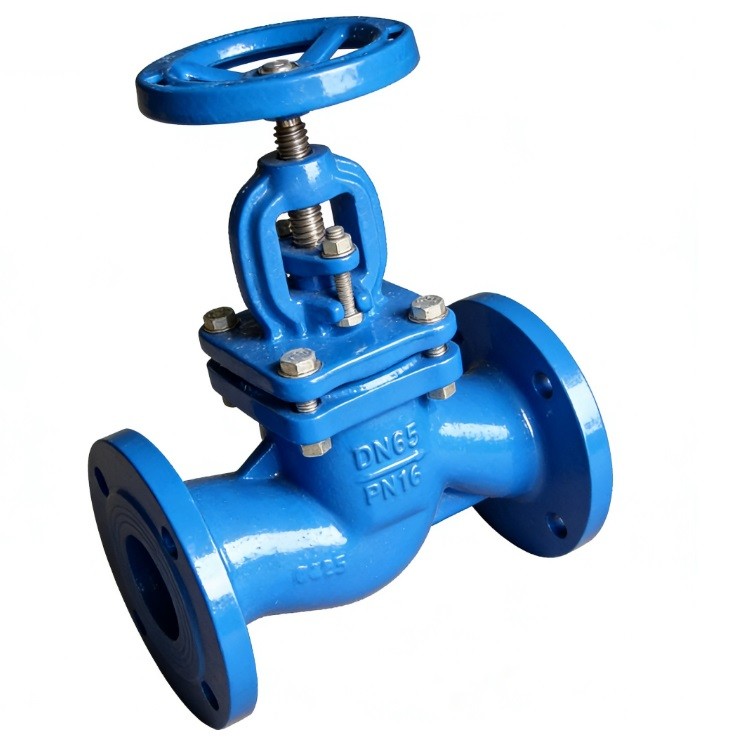

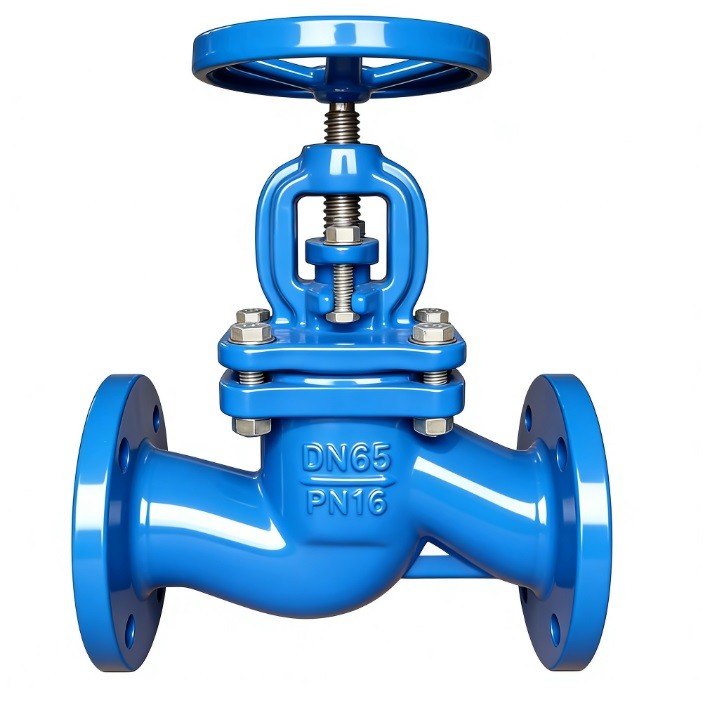

The DIN 3202 F1 Lift Type Globe Valve is a standard European industrial valve used for precise flow regulation and reliable shut-off. The "F1" designation refers to its specific face-to-face length (EN 558-1, Series 1).
Key Features:
Mechanism: Uses a vertical lift disc for accurate throttling.
Standards: DIN 3202 F1 design with flanged ends (EN 1092-2).
Materials: Cast Iron (GG25) or Ductile Iron (GGG40).
Usage: Ideal for steam, hot water, and air in PN16/25 systems.
Technical Attributes Table
1,Size Range,DN15 to DN400 (Standard: DN15–DN300)
2,Pressure Rating,"PN10, PN16, PN25 (PN16 is most common)"
3,Body Material,Grey Cast Iron (GG25 / EN-GJL-250)
4,Alternative Body,Ductile Iron (GGG40 / EN-GJS-400)
5,Face-to-Face,DIN 3202-F1 (Same as EN 558-1 Series 1)
6,Flange Drilling,EN 1092-2 (Standard Raised Face)
7,Design Standard,DIN 3356 / EN 13789
8,Test Standard,EN 12266-1 (Hydraulic Shell & Seat Test)
9,Stem Type,Rising Stem / External Thread (OS&Y)
10,Bonnet Type,Bolted Bonnet (Easier maintenance/repair)
11,Disc Design,Flat or Conical (Lift type for throttling)
12,Stem Material,Stainless Steel (X20Cr13 / SS410)
13,Seat Material,Stainless Steel (13% Cr) or Bronze
14,Packing,Flexible Graphite (Standard) or PTFE
15,Operating Temp.,−10∘C to +300∘C (varies with seat/packing)
16,Operation,Handwheel (Standard) or Gearbox (Large sizes)
17,Media Compatibility,"Steam, Hot Water, Oil, Air, Non-corrosive liquids"
18,Flow Direction,Unidirectional (indicated by arrow on body)
19,Finish/Coating,Anti-corrosive Epoxy or Alkyd Paint
20,Tightness Class,Rate A (Bubble tight) or Rate B (Metal seated)
