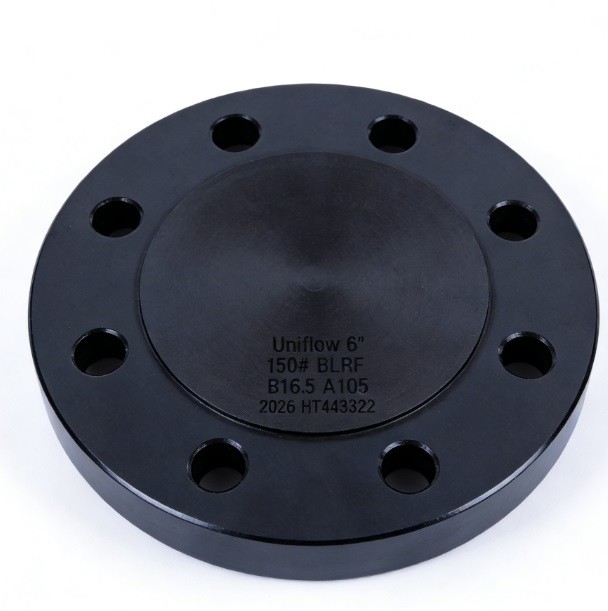

ASME B16.5 A105 Blind flanges are the standard solution for sealing the ends of high-pressure piping systems. Forged from high-quality carbon steel, the A105 grade ensures excellent strength and reliability for ambient and higher-temperature service. The 150LBS rating is the most common pressure class for general industrial applications. These solid discs are bolted into place, providing a liquid-tight seal that allows for easy system expansion or maintenance access in refineries and chemical plants.
Technical attributes
Flange Type: Blind (BLRF)
Pressure Class: 150 LBS
Size Range: NPS 1/2 to NPS 24
Manufacturing: Forged and Machined
Heat Treatment: Normalized (if specified)
Facing Type: Raised Face (RF)
RF Height: 1.6 mm (1/16 inch)
Surface Finish: 125-250 AARH (Serrated)
Carbon Content: Max 0.35 percent
Manganese Content: 0.60 to 1.05 percent
Yield Strength: Min 250 MPa (36 ksi)
Tensile Strength: Min 485 MPa (70 ksi)
Hardness: Max 187 HBW
Bolting Pattern: Standard ASME B16.5
Certification: EN 10204 3.1
Service Temp: -29℃ to 425℃
