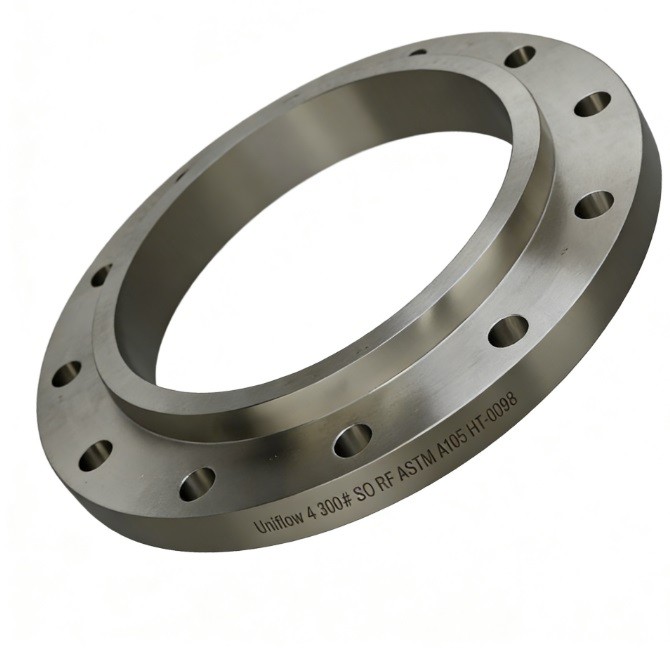

The ASME B16.5 A105 Slip-On (SO) flange is the workhorse of carbon steel piping systems. Designed for Class 300 pressure ratings, it is forged from high-quality carbon steel for ambient and higher-temperature service. Unlike weld neck versions, this flange slides over the pipe and is secured with two fillet welds—one internal and one external. This design offers lower installation costs and easier alignment, making it ideal for non-critical, moderate-pressure applications in refineries and utility lines.
Technical Attributes: A105 Class 300 SO
Material Grade,ASTM A105 (Carbon Steel) :
Standard,ASME B16.5 :
Flange Type,Slip-On (SO) :
Pressure Class,300 LBS (Class 300) :
Manufacturing,"Forged, Normalized (if required) :"
Facing Type,Raised Face (RF) :
RF Height,"0.06"" (1.6mm) :"
Size Range,"NPS 1/2"" to 24"" :"
Connection,Double Fillet Weld :
Carbon Content,Max 0.35% :
Yield Strength,Min. 250 MPa (36 ksi) :
Tensile Strength,Min. 485 MPa (70 ksi) :
Hardness,Max 187 HBW :
Temp Range,-29°C to 425°C (-20°F to 800°F) :
Surface Finish,Serrated Spiral (125-250 AARH) :
Bore Size,Slightly larger than Pipe OD :
Certification,EN 10204 3.1 :
Primary Industry,"Oil, Gas, Steam, & Water Utility :"
