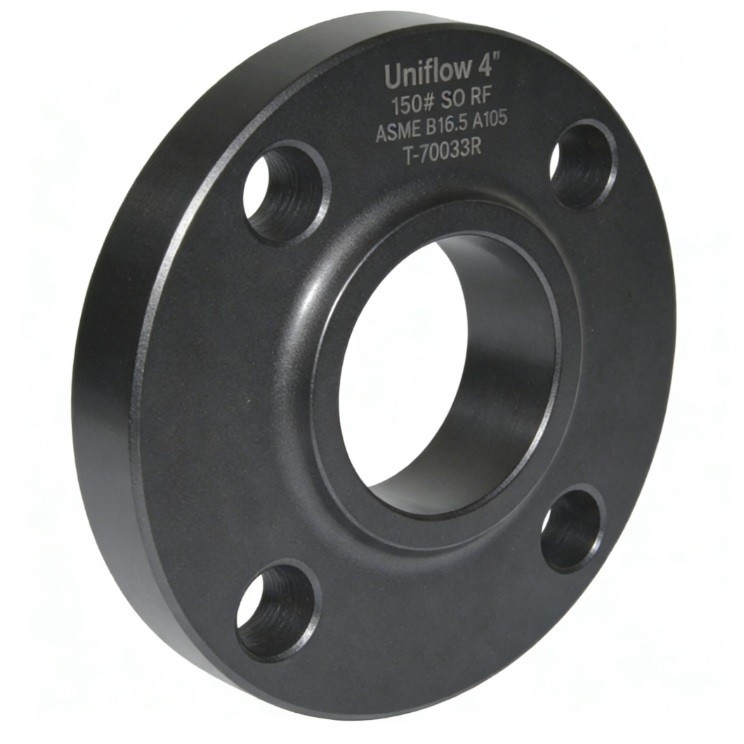

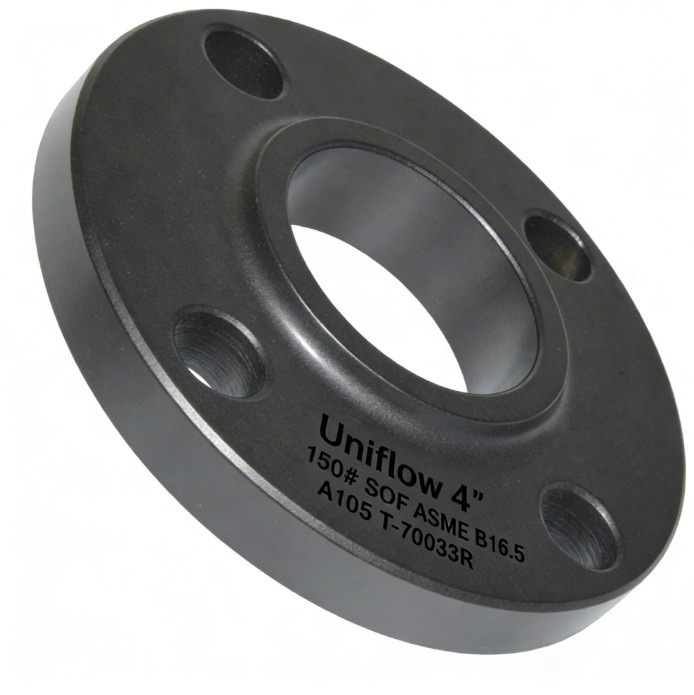

The ANSI B16.5 A105 Slip-On flange is a fundamental component for low-pressure carbon steel piping. As a Class 150 rated part, it is forged from A105 steel, ensuring excellent weldability and strength for non-critical service. The Slip-On design allows the flange to be positioned easily before being secured by double fillet welds. This flange is widely used in water, oil, and gas utilities where temperatures stay between -29°C and 425°C, providing a cost-effective and reliable sealing solution.
Attribute,Specification Details
Material Grade: ASTM A105 Carbon Steel
Standard: ASME B16.5 (ANSI)
Flange Type: Slip-On SO
Pressure Class: 150 LBS
Size Range: NPS 1/2 to 24 inch
Manufacturing: Forged and Machined
Facing Type: Raised Face RF
RF Height: 0.06 inch 1.6mm
Connection: Double Fillet Weld
Carbon Content: Max 0.35 percent
Manganese: 0.60 to 1.05 percent
Yield Strength: Min 250 MPa 36 ksi
Tensile Strength: Min 485 MPa 70 ksi
Hardness: Max 187 HBW
Temp Range: -29C to 425C
Surface Finish: 125-250 AARH Serrated
Bore Size: Pipe OD plus clearance
Primary Industry: Utility and Plumbing
